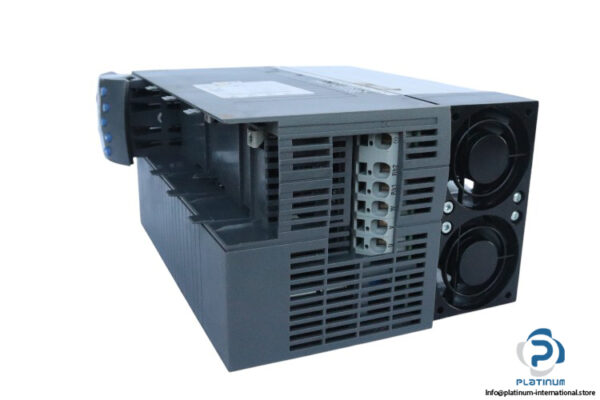

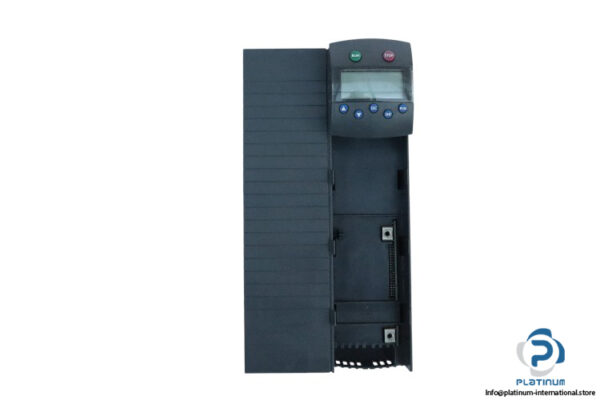

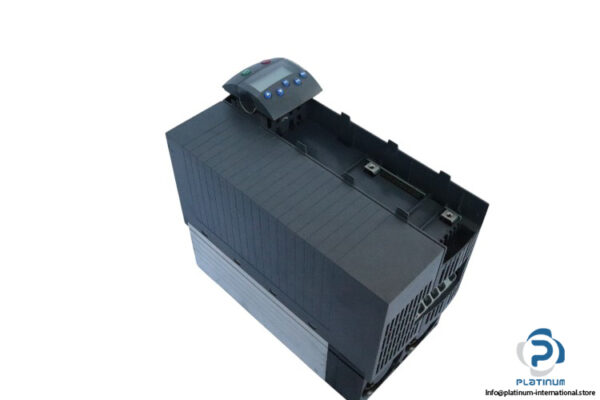

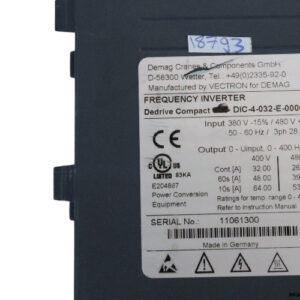

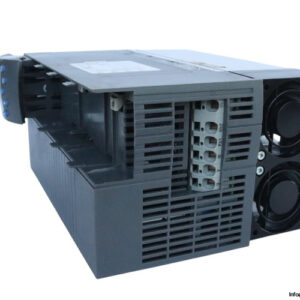

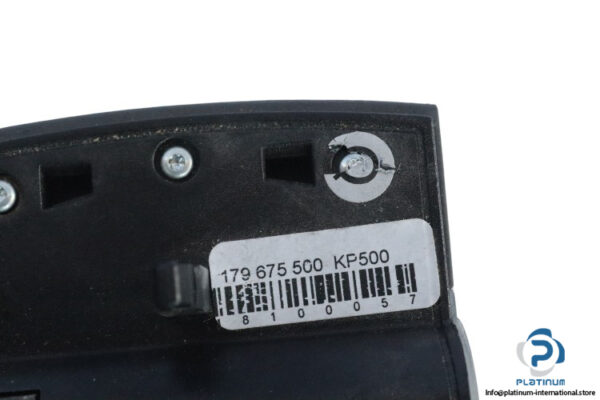

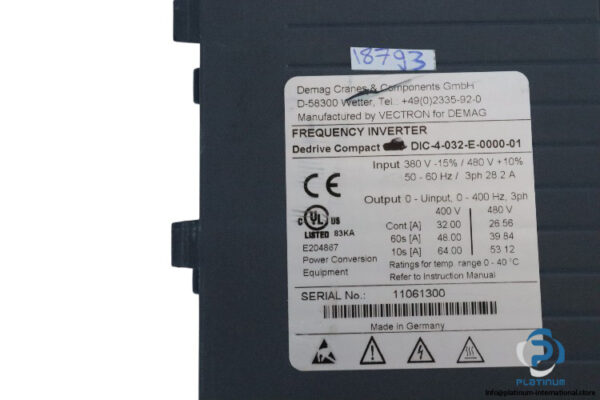

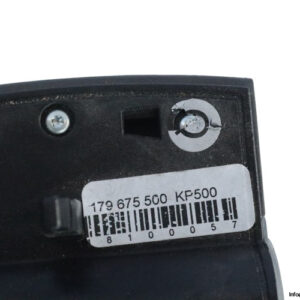

Demag Dedrive DIC-4-032-E-0000-01 Compact Frequency Inverter
The Demag Dedrive DIC-4-032-E-0000-01 Compact Frequency Inverter is designed to provide reliable motor control in demanding industrial environments. With a frequency range of 0 to 400 Hz and a current capacity of up to 32 A at 400 V, this inverter offers efficient and precise control of motor speed, making it ideal for applications that require high-performance and durability.
- Manufacturer: Demag
- Type: Compact Frequency Inverter
- Model: DIC-4-032-E-0000-01
- Family: Dedrive
Technical Information
- Input Voltage: 3 phase/380 to 480 V AC
- Input Current: 28.2 A
- Input Frequency: 50/60 Hz
- Output Voltage: 3 phase/0 to 380 to 480 V AC
- Rated Output Current: Cont. 32 A at 400 V, Cont. 26.56 A at 480 V
- Output Frequency: 0 to 400 Hz
- Long-Term Overload Current (60 s): 48 A at 400 V, 39.84 A at 480 V
- Short-Term Overload Current (10 s): 64 A at 400 V, 53.12 A at 480 V
- Ambient Temperature: 0 to 40°C
- Dimensions: 250 x 125 x 200 mm
Built for efficiency and precision, the Demag Dedrive DIC-4-032-E-0000-01 Compact Frequency Inverter is an essential component for motor control in various industrial systems that require high reliability and robust performance.
