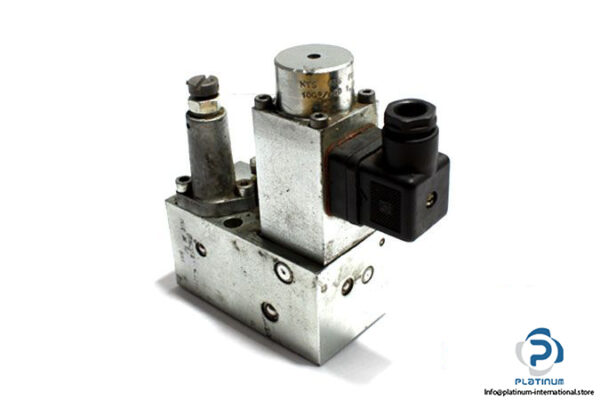

Manufacturer: HAWE

Type: Lifting / Lowering Valve

Model: HSV 22 R2

Design: 2/2-way directional seated valve (cone seated valve), solenoid actuated,

combined with a pressure limiting, with throttle valve

Type of Actuation: Electrically

Working Pressure: 315 bar

Max. Pressure: 400 bar

Max. Flow Rate: 30 l/min

Hydraulic Connection(P): G 3/8,Threaded

Hydraulic Connection(A,R,H): G ½ ,Threaded

Fluid Temperature Range: -25 … 80°C

Attachment: HAWE KTS G35 F03 SOLENOID COIL

Manufacturer: HAWE

Type: Solenoid Coil

MNR: KTS G35 F03

Nominal voltage per Coil: 24 VDC

Current Rating Per Coil: 1.10 A
