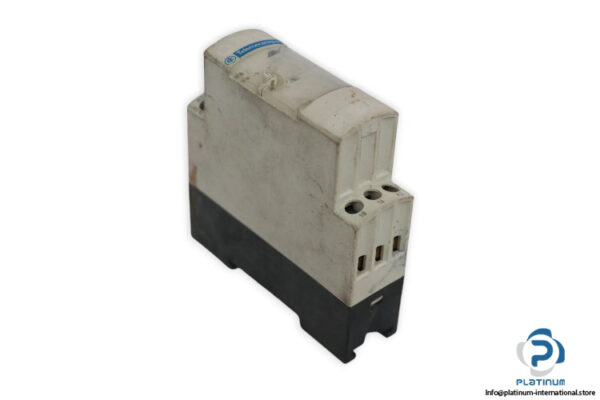

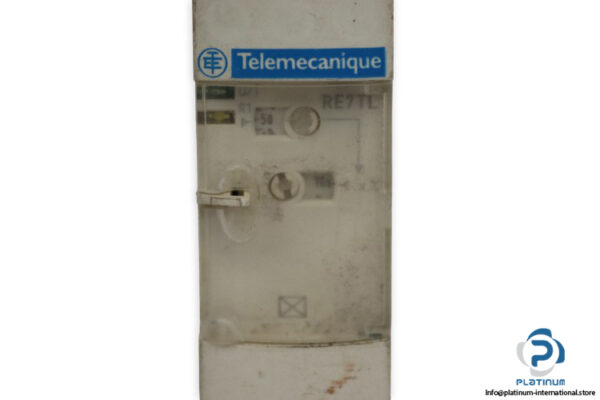

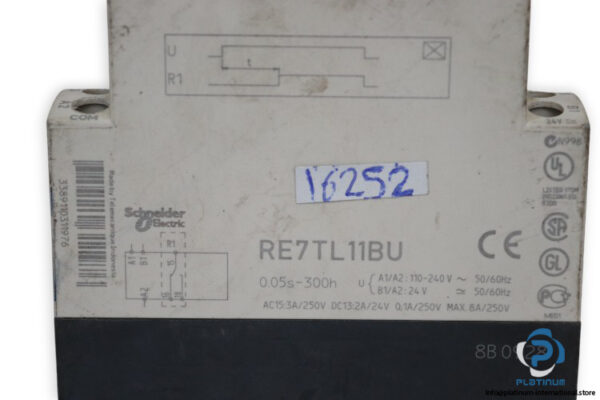

Manufacturer: TELEMECANIQUE
Type: ON-DELAY TIMING RELAY
Model: RE7TL11BU
Part no.: 8B 0928

Range of product: Zelio Time
Product or component type: Industrial timing relay
Degree of protection:
IP20 (terminals)
IP50 (housing)
rated supply voltage (Us):
110…240 V AC  50/60 Hz
24 V AC/DC  50/60 Hz
Voltage range: 0.85…1.1 Us
Connections–terminals:
Screw terminals, 2 x 1.5 mm² flexible with cable end
Screw terminals, 2 x 2.5 mm² flexible without cable end
Maximum switching voltage: 250 V AC/DC
thermal Current (Ith): 8 A
rated insulation voltage (Ui):
250 V between contact circuit and control inputs IEC certified
250 V between contact circuit and power supply IEC certified
300 V between contact circuit and control inputs CSA certified
300 V between contact circuit and power supply CSA certified
Discrete output type: Relay
Tightening torque: 0.6…1.1 N. m
Time delay range: 0.05 s…300 h
Contacts material: 90/10 silver nickel contacts
Ambient temperature: -20…60 °C
Dimension: 78 x 22.5 x 80 mm
