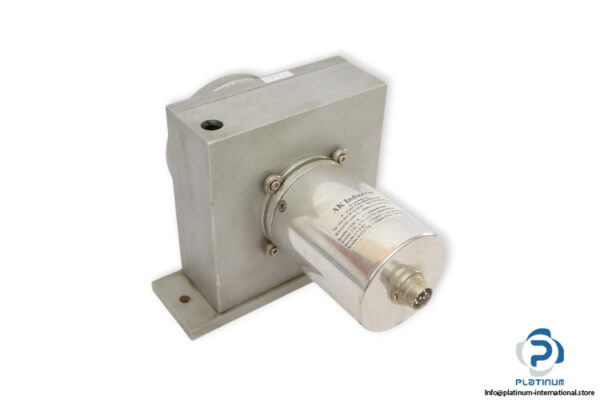

AK INDUSTRIES GMBH CD1153000I420L15C LINEAR POTENTIOMETER
This industrial-grade linear potentiometer from AK INDUSTRIES GMBH is designed for precision linear displacement measurement in demanding environments. With a robust aluminium body, high IP65 protection, and 4“20 mA output signal, it ensures accurate performance and reliable integration into automation systems.

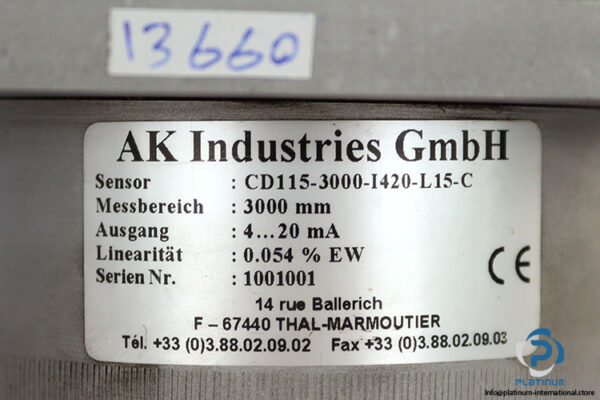

Manufacturer: AK INDUSTRIES GMBH
Type: Linear Potentiometer
Model: CD1153000I420L15C
Ref No.: 1001001
Technical Information
- Series: CD115
- Measurement Range: 0 / 3000 mm
- Linearity: 0.054 %
- Useful Electrical Stroke Length: 200 mm
- Output Signal: 4 / 20 mA
- Electrical Connection: Male Connector, 15-Pin, 1 m
- Material: Aluminium
- Protection Class: IP65
- Temperature Range: -20 / 80 °C
- Diameter: 58 mm
- Dimension: 115 x 115 x 162 mm
