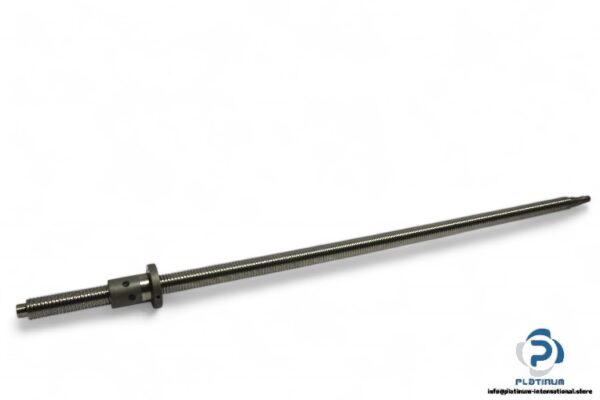

Flange Nut Ball Screw (Model: 32-5 R)

Manufacturer: SKF

Type: Flange Nut Ball Screw

Model: 32-5 R

The SKF Flange Nut Ball Screw (Model: 32-5 R) is a high-performance component designed for precise motion control in various mechanical systems. With its 32 mm nominal diameter and 5 mm lead, this ball screw is built to handle heavy loads efficiently.

• Manufacturer: SKF
• Type: Flange Nut Ball Screw
• Model: 32-5 R
• Size: 32 x 5 R
• Nominal Diameter (dN): 32 mm
• Lead (P): 5 mm
• Number of starts: 1
• Direction of Lead: Right-Hand Thread
• Threaded Length: 1135 mm
• Total Screw Length: 1230 mm
• Dimensions:
• Flange Diameter: 70 mm
• Nut Outer Diameter: 45 mm
• Nut Length: 74 mm
• Flange Thickness: 12 mm
• d2: 28.7 mm
• d1: 31.6 mm
• Basic Load Ratings:
• Dynamic: 19.1 kN
• Static: 40.4 kN
