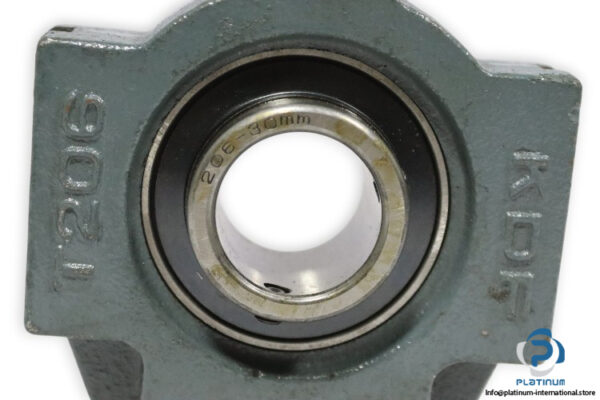

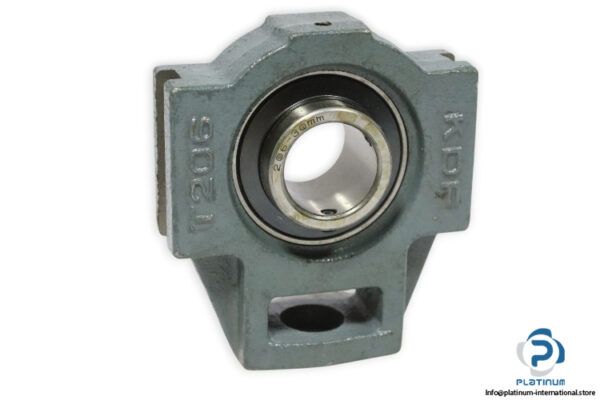

KDF Take Up Ball Bearing Unit – Model UCT 206
The KDF UCT 206 Take Up Ball Bearing Unit is designed for high-quality performance and durability. It features a UC206 bearing with a shaft diameter of 30 mm and a housing type of take-up. This unit is ideal for applications requiring reliable shaft support and adjustment. The set includes two units and is built to handle heavy-duty industrial environments.
🔧 Technical Specifications:
- Manufacturer: KDF
- Type: Take Up Ball Bearing Unit
- Model: UCT 206
- Housing No.: T206
- Bearing No.: UC206
- Shaft Diameter: 30 mm
- Overall Width: 37 mm
- Width of Inner Ring: 38.1 mm
- Overall Height: 102 mm
- Height of Attachment End: 56 mm
- Overall Length: 113 mm
- Diameter of Attachment Bolt Hole: 22 mm
- Housing Type: Take-up
- Item Per Set: 2
This ball bearing unit ensures smooth operation and secure attachment for a variety of industrial applications. With its robust construction and ease of installation, it is an excellent choice for systems that require high reliability and precise adjustments.
