LEISTRITZ 10 01 46869 CONTROL BLOCK

Control Block

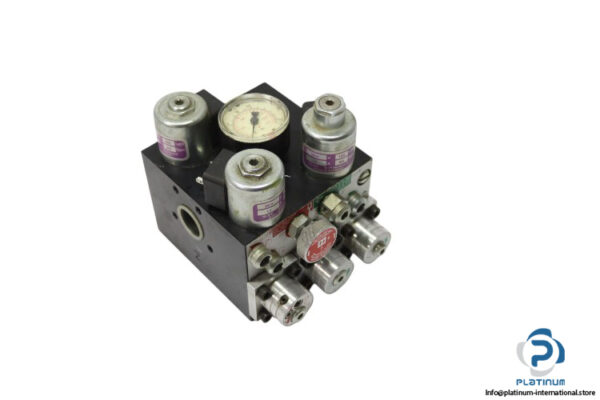

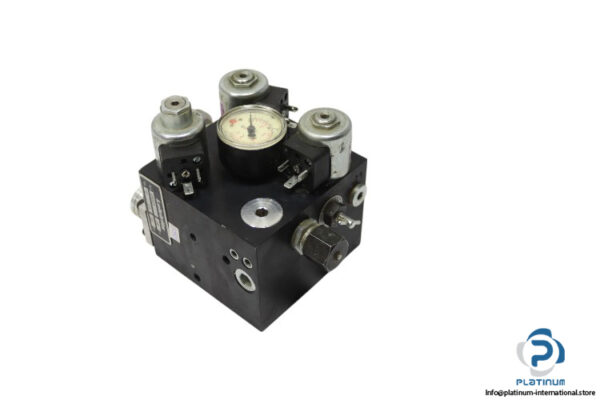

LEISTRITZ 10 01 Control Block is a hydraulic component designed for oil-based fluid control systems. With a maximum flow rate of 38 L/min, a pressure capacity of 70 bar, and multiple port sizes, it ensures efficient operation. Attached with a BLAIN SG solenoid coil operating at 24 VDC and 1.1 A.

SKU: 1073249 Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

LEISTRITZ 10 01 Control Block

The LEISTRITZ 10 01 Control Block is a high-performance hydraulic component designed for precise fluid control in industrial applications. Engineered for oil-based systems, it supports a maximum flow rate of 38 L/min and operates under a pressure of up to 70 bar. With multiple port size options and compatibility with the BLAIN SG solenoid coil, this control block ensures reliable and efficient operation.

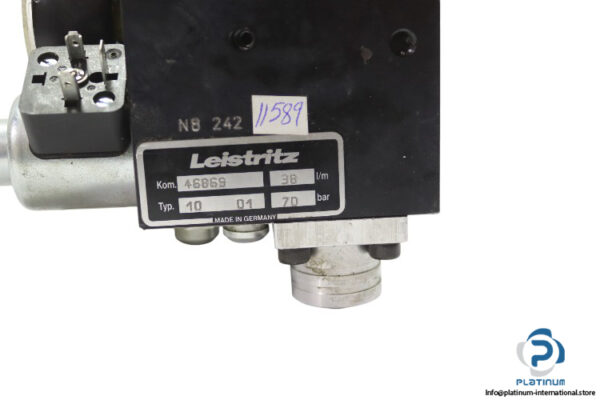

  • Manufacturer: LEISTRITZ
  • Type: Control Block
  • Model: 10 01
  • Part No.: 46869

Technical Specifications

  • Fluid: Oil
  • Max. Flow Rate: 38 L/min
  • Max Operating Pressure: 70 bar
  • Port Size: G1/8, G¼, G½, G3/4

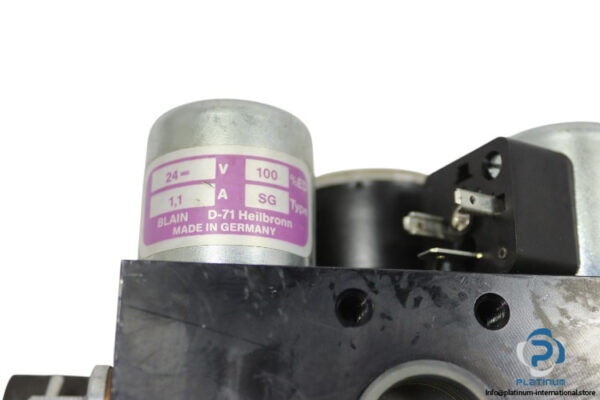

Attached Component

  • Solenoid Coil: BLAIN SG
  • Voltage: 24 VDC
  • Current: 1.1 A
Weight4,7 kg
Condition

Manufacturer

Type of Product

Shelf No.

Model
