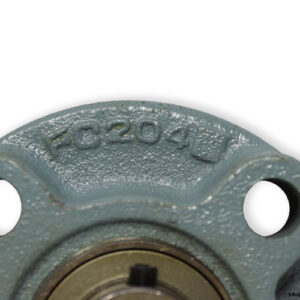

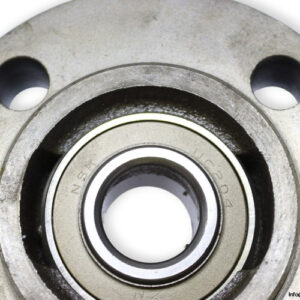

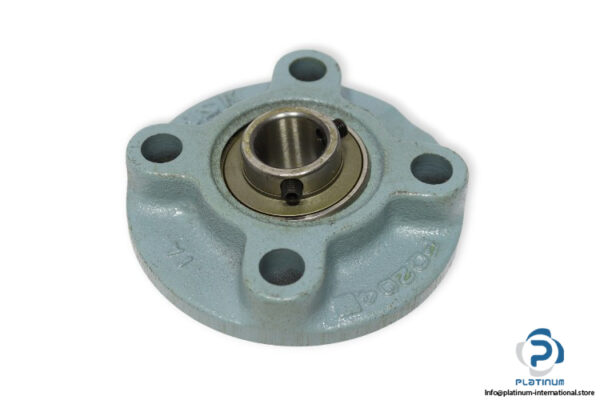

Manufacturer: NSK
Type: Round flange ball bearing unit, cast housing with spigot joint
Model: UCFC 204
Bearing Number: UC204
Housing Number: FC204

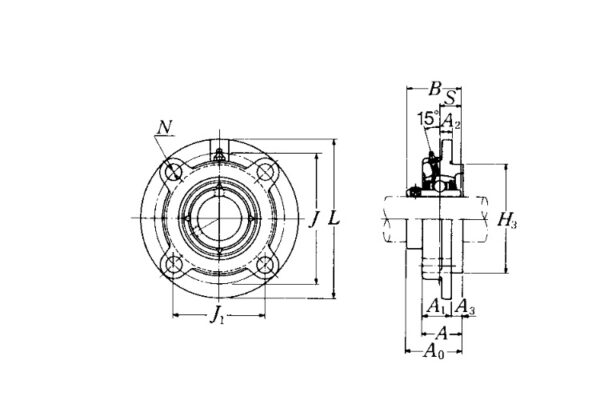

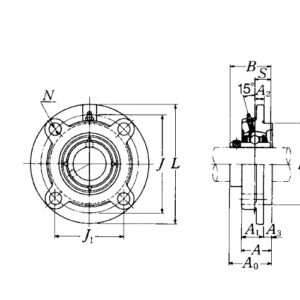

Dimensions
Bore Diameter d: 20 mm
Outside diameter L: 100 mm
Distance between attachment bolts J1: 55.2 mm
Pitch diameter of attachment bolts J: 78 mm
Length of attachment bolt hole N: 12 mm
Width of inner ring B: 31 mm
Overall width A0: 33.3 mm
Bolt size: M10
Locking Device: Set Screw
