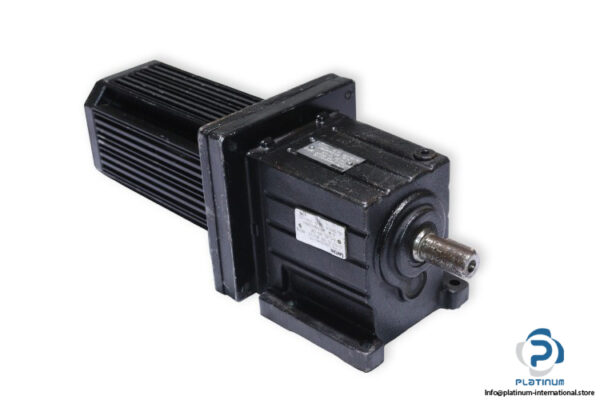

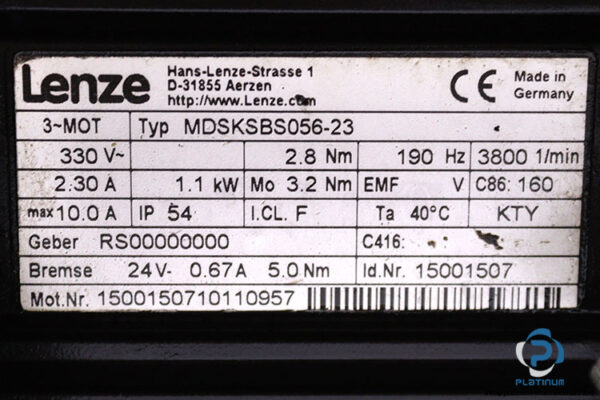

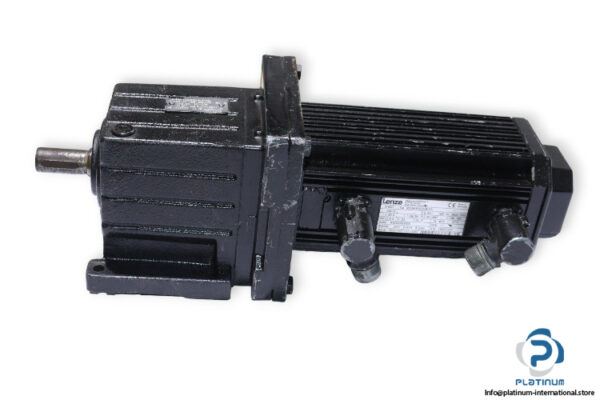

Manufacturer: Lenze
Type: Servo Motor with Gearbox
Model: MDSKSBS056-23

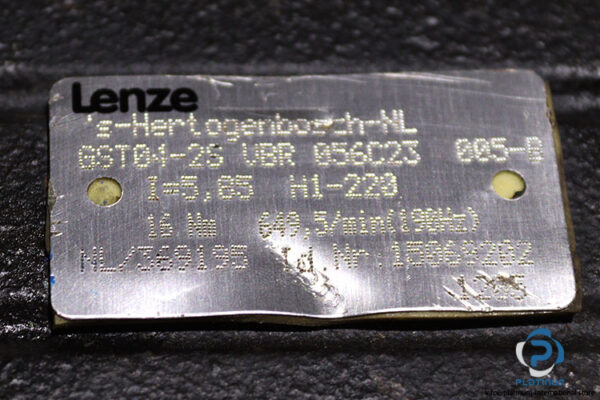

Gear Model: GST04-2S

Ratio [i]: 5.85
Gear Torque [Nm]: 16
Output Speed [rpm]: 649.5
Rated Current [A]: 2.3
Max. Current [A]: 10.0
Rated Voltage [V]: 330
Rated Power [Kw]: 1.1
Rated Speed [min^-1]: 3800
Stall Torque [Nm]: 3.2
Rated Torque [Nm]: 2.8
Frequency [Hz]: 190
Protection Class [IP]: 54
Thermal Class: F
Brake Current [A]: 0.67
Brake Voltage [Vdc]: 24
Brake Torque [Nm]: 5.0
