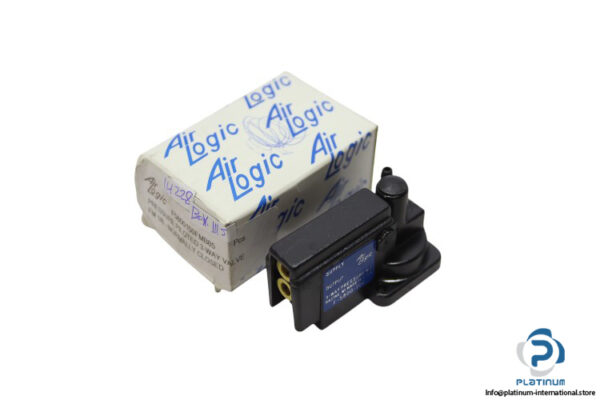

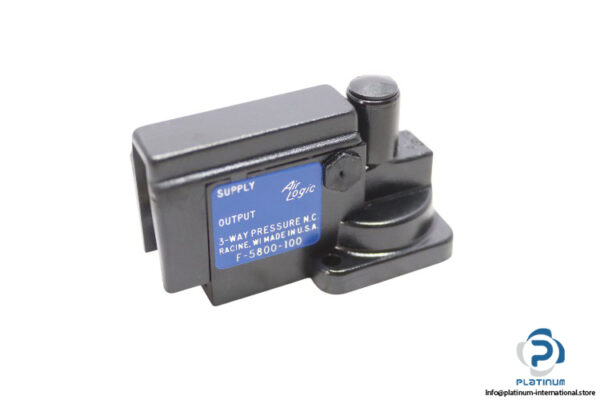

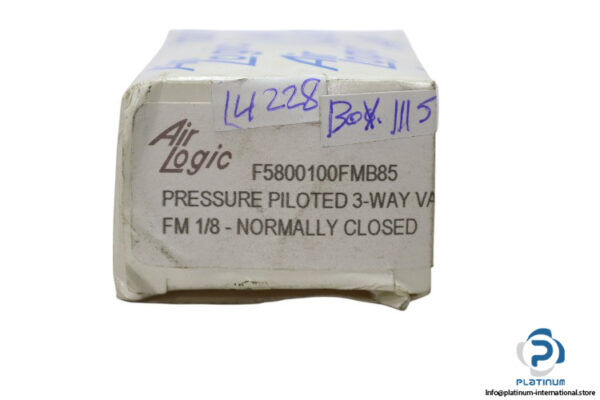

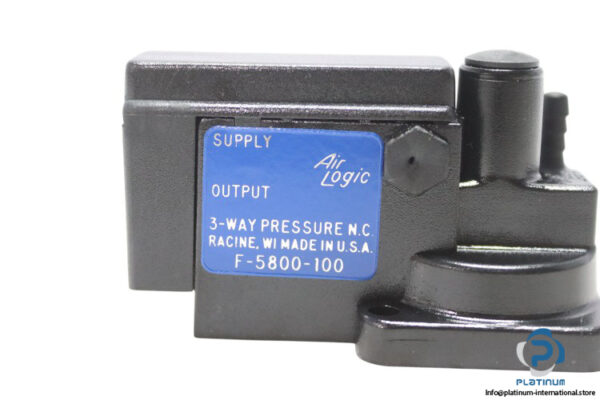

Air Logic F-5800-100 Pressure Piloted Valve
The Air Logic F-5800-100 Pressure Piloted Valve is designed for precise control in fluid handling applications. Featuring a flush mount design, this valve senses pressure to turn the output on within a range of 0.5 to 100 PSI, making it ideal for various pneumatic and hydraulic systems.
Manufacturer: AIR LOGIC
Type: Pressure Piloted Valve
Model: F-5800-100
MRN: F5800100FMB85
Ref No: FM 1/8
Technical Data:
- Switch Selection: Normally Closed – Senses Pressure / Turns Output ON
- Sensing Range: 0.5 to 100 PSI
- Mounting Style: Flush Mount
- Port Connection: Barb for G1/8
- Housing Material: Polysulfone
- Diaphragm Material: Polyurethane
- Spring Material: Stainless Steel or Music Wire
- Air Consumption at 6 bar: 0.7 l/min
- Nominal Orifice Size: 2 mm
- Fittings: 4 mm Push to Connect
- Pressure Range: 1.5 bar – 8 bar
