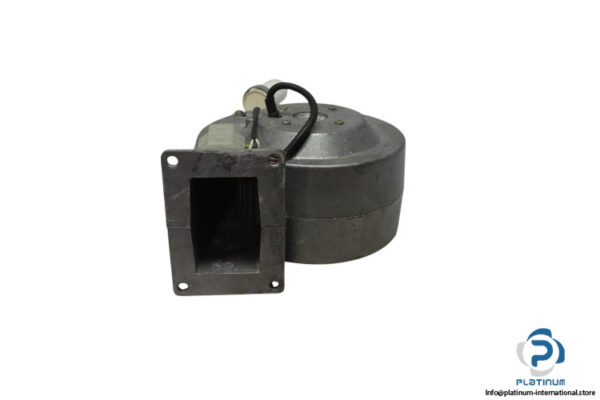

Ebm-papst G2E120-AR77-A6 Blower Fan
The Ebm-papst G2E120-AR77-A6 Blower Fan is designed for efficient airflow with a motor type M2E068-BF. With durable metal blades and fan housing, it offers high performance across various industrial applications.
Manufacturer: Ebm-papst
Model: G2E120-AR77-A6
Type: Blower Fan

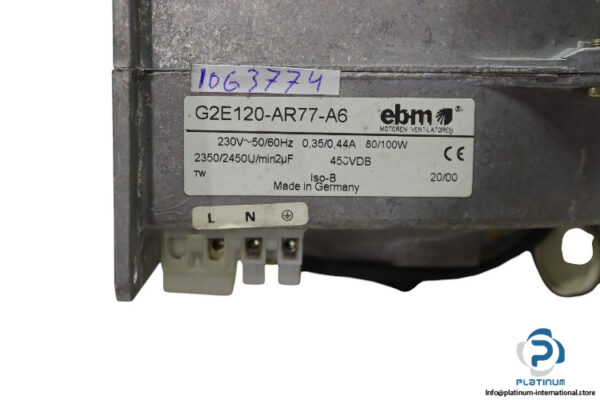

Technical Information:
- Motor Type: M2E068-BF
- Direction: Push
- Nominal Voltage: 230 V
- Rated Current: 0.35/0.44 A
- Frequency: 50/60 Hz
- Speed: 2350/2450 rpm
- Power Input: 0.08/0.1 kW
- Max. Ambient Temperature: 45 °C
- Min. Ambient Temperature: -25 °C
- Blade Material / Fan Housing Material: Metal
- Capacitor Voltage: 450 V
- No. of Wires: 3
- Duty: S1
- Insulation Class: B
- Degree of Protection: IP44

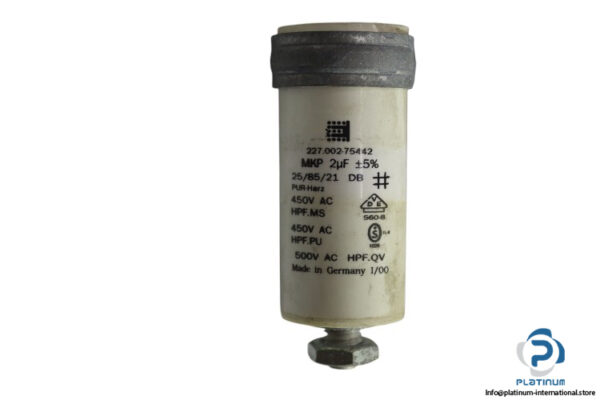

- Attached with: MKP 227.002.75442 Capacitor
- Motor Capacitor: 2 µF
- Voltage: 450 / 500 V AC
- Climatic Category: 25/85/21 DB
