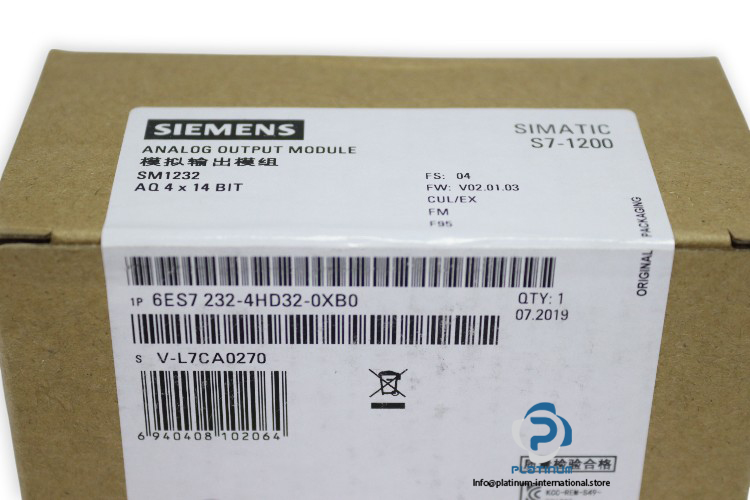

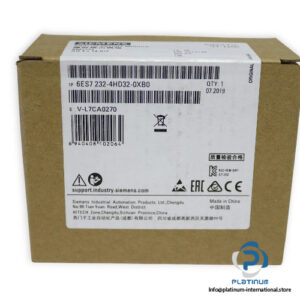

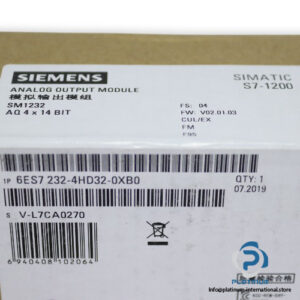

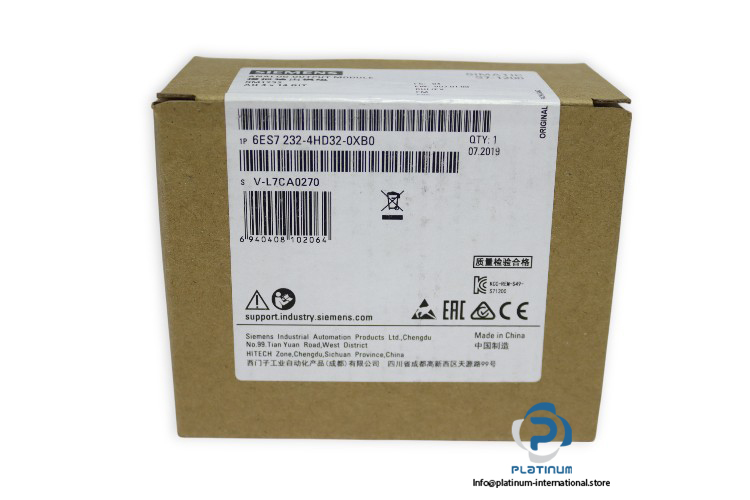

SIEMENS 6ES7 232-4HD32-0XB0 ANALOG OUTPUT MODULE

The Siemens SM 1232 AQ analog output module delivers high-precision signal control and seamless integration into industrial automation systems. Designed for reliability and accuracy, this module offers both voltage and current output options with 14-bit resolution, ideal for advanced signal conversion applications.

Manufacturer: Siemens
Type: Analog Output Module
Model: 6ES7 232-4HD32-0XB0
Product Type Designation: SM 1232, AQ 4×14 bit

Technical Information

• Rated Value: 24V DC
• Current Consumption, Typ.: 45 mA
• From Backplane Bus 5 V DC, Typ.: 80 mA
• Power Loss, Typ.: 1.5 W
• Number of Analog Outputs: 4
• Output Ranges (Voltage): -10 V to +10 V
• Output Ranges (Current): 0 to 20 mA
• Cable Length: 100 m
• Degree of Protection: IP20
• Ambient Temperature During Operation: -20 / 60 °C
• Dimensions (H x W x D): 100 x 45 x 75 mm
