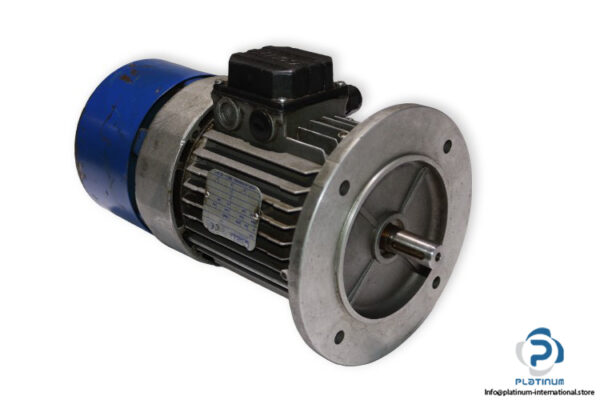

Coel F80B4 Brake Motor

The Coel F80B4 is a robust and efficient brake motor engineered for reliable performance in continuous-duty industrial applications. Designed for smooth operation and strong braking capability, it combines high efficiency, precision, and durability under demanding working conditions.

Manufacturer: Coel
Type: Brake Motor
Model: F80B4

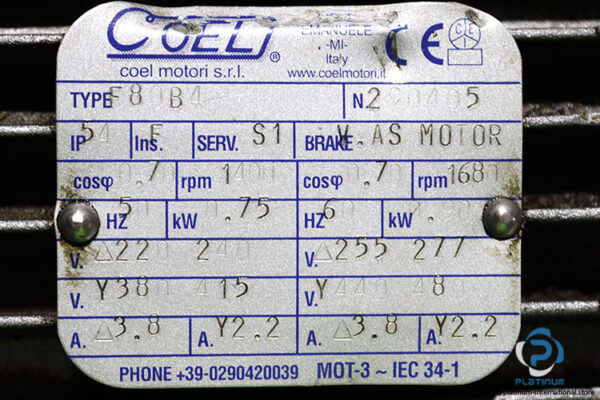

Technical information

• Rated Power [kW]: 0.75 / 0.90
• Rated Voltage at 50 Hz [V]: 220“240 / 380“415
• Rated Voltage at 60 Hz [V]: 255“277 / 440“480
• Rated Current [A]: 3.8 / 2.2
• Rated Speed [min»¹]: 1400 / 1680
• Frequency [Hz]: 50 / 60
• Protection Class [IP]: 54
• Thermal Class: F
• Duty: S1 (Continuous Duty)
• Power Factor [cos φ]: 0.70
