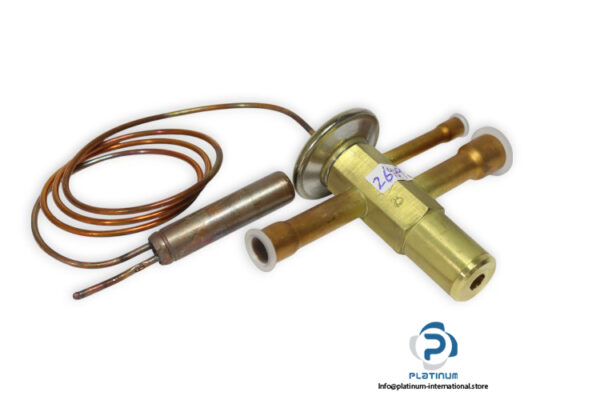

HONEYWELL TLEXE0685 THERMOSTATIC EXPANSION VALVE

Precision-engineered for refrigerant control, the Honeywell TLEXE0685 thermostatic expansion valve delivers optimal performance across a wide operating range and temperature spectrum. Ideal for R410A and R22 systems.

Manufacturer: Honeywell
Type: Thermostatic Expansion Valve

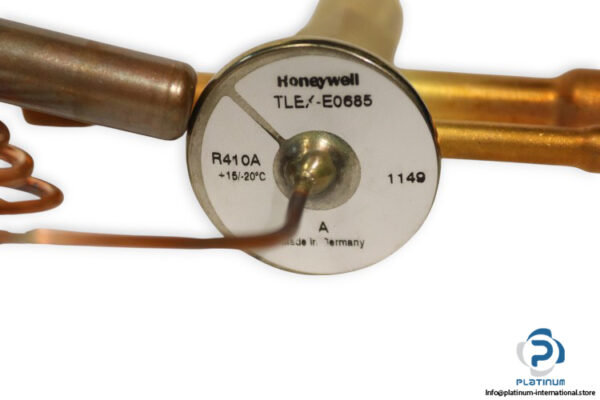

Model: TLEXE0685
MNR: R410A
Part No.: 1149
Series: TLEX / A

Technical Specifications

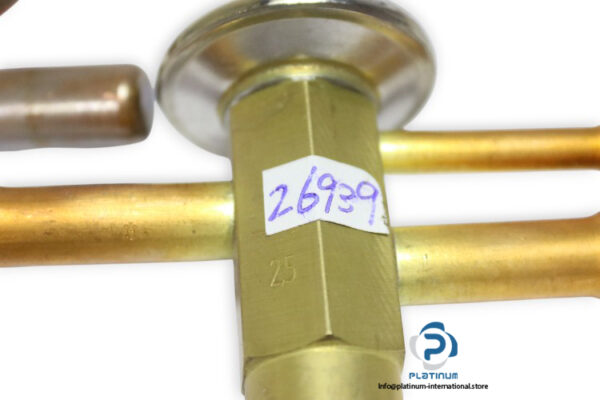

• Orifice Size: 2.5
• Nominal Capacity Range: 21.5 to 52.3 kW (R22)
• Maximum Pressure PS: 29 bar
• Maximum Test Pressure: 32 bar (simultaneous on all connections)
• Max. Ambient Temperature: 100 °C
• Max. Bulb Temperature: Gas Charge: 140 °C, Liquid Charge: 70 °C
• Static Superheat: Approx. 3.5 K
• Length of Capillary Tube: 2 m
• Bulb Diameter: 16 mm
• Material: Brass Body, Copper Connection Tubes, Stainless Steel Thermal Head
