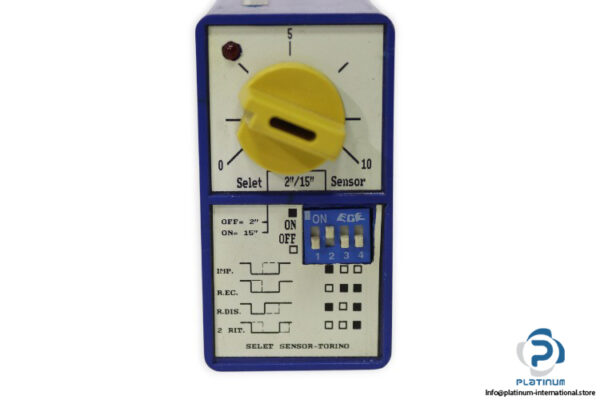

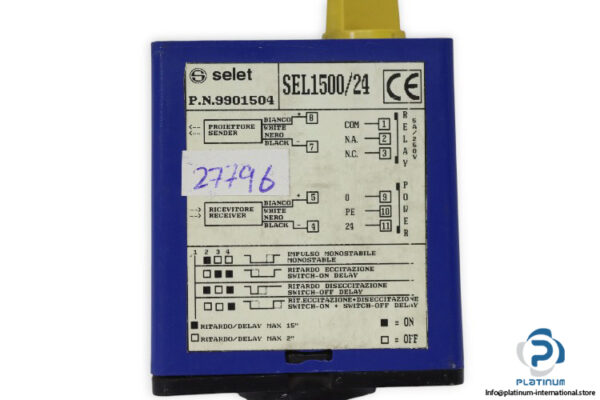

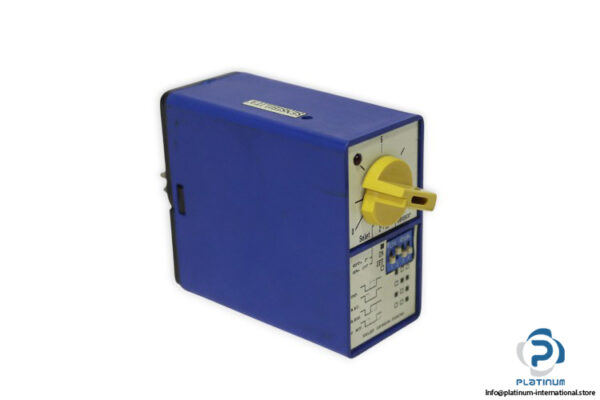

SELET SEL1500/24 SENSOR INTERFACE UNIT

Compact and versatile sensor controller designed for automation systems requiring precise signal processing and relay control. Supports both sender and receiver detection modes with configurable ON/OFF delay impulses, making it suitable for a wide range of industrial sensor applications.

• Manufacturer: Selet Sensor
• Type: Sensor Interface Unit / Sensor Controller
• Model: SEL1500/24
• Part No.: 9901504

Technical Information

• Relay Voltage: 250 V
• Relay Current: 5 A
• Power Supply: 0 to 24 V
• Detecting Range: 0 to 10
• Switching Mode: ON/OFF Switching
• Detection Mode: Receiver, Sender
• Impulse at ON Delay: 15
• Impulse at OFF Delay: 2

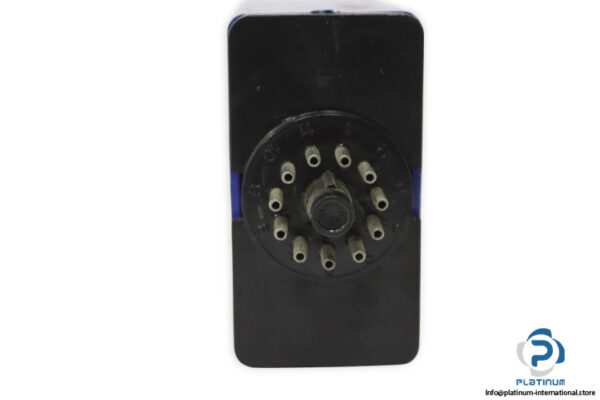

• No. of Pins: 11
