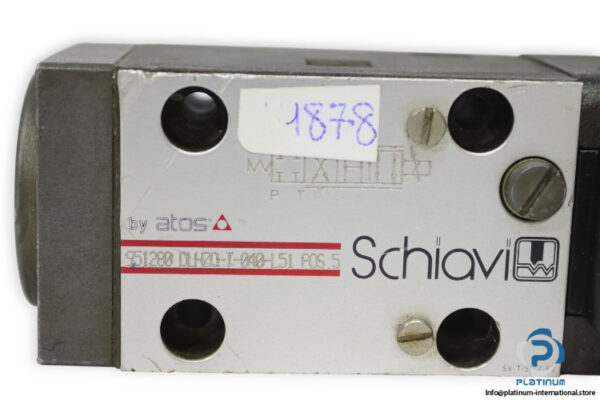

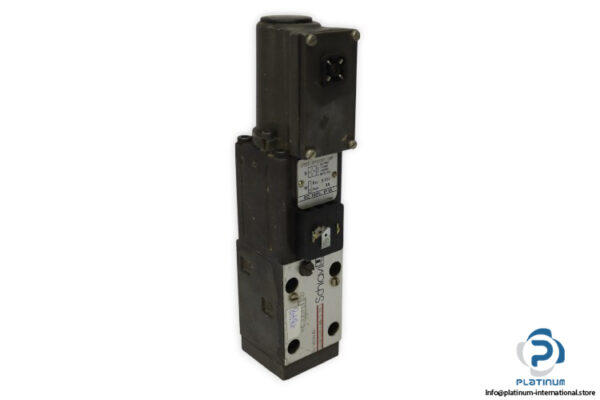

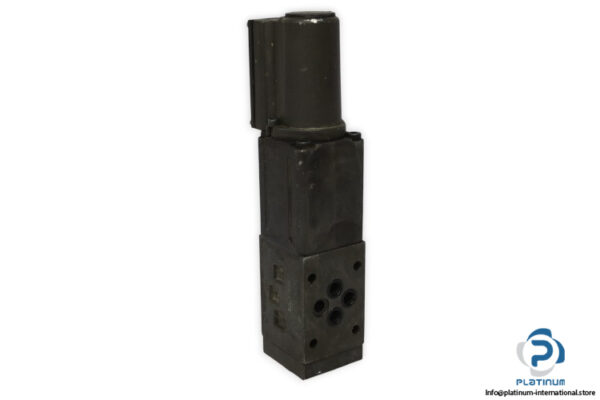

ATOS/SCHIAVI 951280 DLHZO-T-040-L51 SERVO PROPORTIONAL DIRECTIONAL VALVE
This high-performance closed-loop servo proportional directional valve by Atos/Schiavi is designed for precision hydraulic control in demanding industrial applications. Featuring a linear spool type, robust build, and wide operating ranges, it ensures accurate fluid control under varying load and flow conditions. The unit comes equipped with an ATOS 0Z0T-201100 12 F solenoid coil for enhanced actuation response.
Manufacturer: Atos/Schiavi
Type: Servo Proportional Directional Valve (Closed-Loop)
Model: 951280 DLHZO-T-040-L51 POS.5
Technical Information
- Size: 06
- Spool Type: L, linear
- Ambient Temperature Range: -20 to +60°C
- Max. Operating Pressure (Ports P, A, B): 350 bar
- Max. Operating Pressure (Port T): 210 bar
- Max. Flow Rate: 50 l/min
- Hydraulic Fluid Temperature Range: -20 to +60°C
- Viscosity Range: 20 to 100 mm²/s
- Max. Power: 50 W
- Connection: Sup-plate
Attached Component

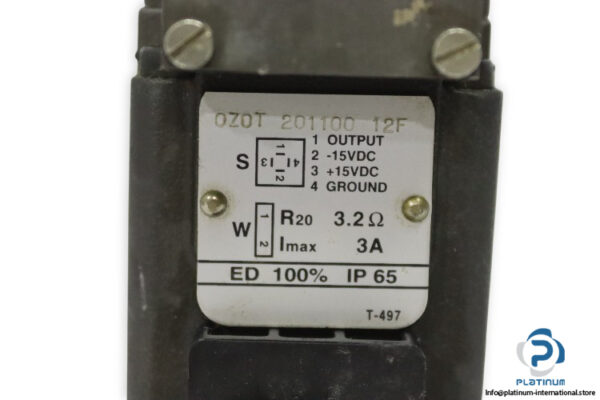

Solenoid Coil: ATOS 0Z0T-201100 12 F
- Coil Resistance (R at 20°C): 3.2 „¦
- Voltage/Current: 15 V DC / 3 A
- IP Rating / Duty: IP65 / ED 100%
