APPLIED ROBOTICS S3.1R-P-2PNP-M8-B-080-A000 ROBOT ADAPTOR

Engineered for high-precision robotic applications, this Applied Robotics adaptor features a pneumatic actuating mechanism and robust design suitable for automated industrial environments. It includes a sender unit and an electrical module, enhancing connectivity and modular integration for Sigma Series robots.

Manufacturer: Applied Robotics
Type: Robot Adaptor
Model: S3.1R-P-2PNP-M8-B-080-A000
Serial No.: 2011005005
Code: D500510 / 000099767-001
Rev: 00

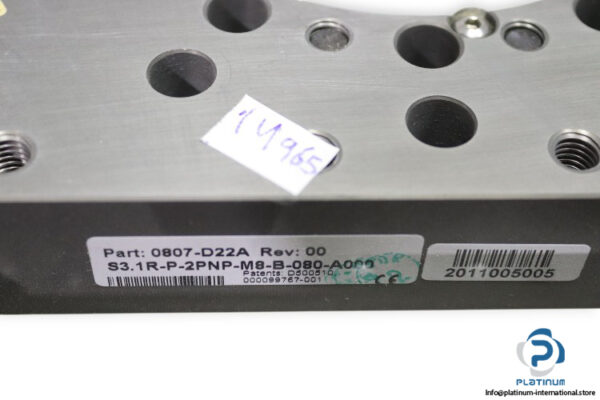

Part No.: 0807-D22A

Technical Information

• Connection: 3/8 inch
• Indicator Switch Type: 2PNP, 24 V DC
• Housing Type: Robot Side
• Actuating Mechanism: Pneumatic
• Product Code: Sigma 3.1
• Pilot Diameter: 80 mm
• Moment “ Mx, My: 1695 Nm
• Moment “ Mz: 1780 Nm
• Height: 107 mm
• Operating Temp.: 5 to 60 °C
• Operating Pressure: 6 bar
• Total Couple Height: 120 mm

Attachment 1: APPLIED ROBOTICS 0303-D12N SENDER

• Manufacturer: Applied Robotics
• Type: Sender

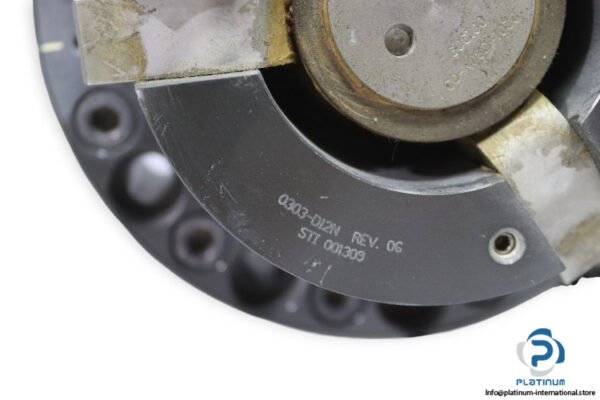

• Model: 0303-D12N
• Part No.: STI 001309
• Revision: REV. 06
• How to Work: Rotating

Attachment 2: PRODUCT ENGINEERING SERVICES ELECTRICAL MODULE

• Manufacturer: Product Engineering Services
• Type: Electrical Module

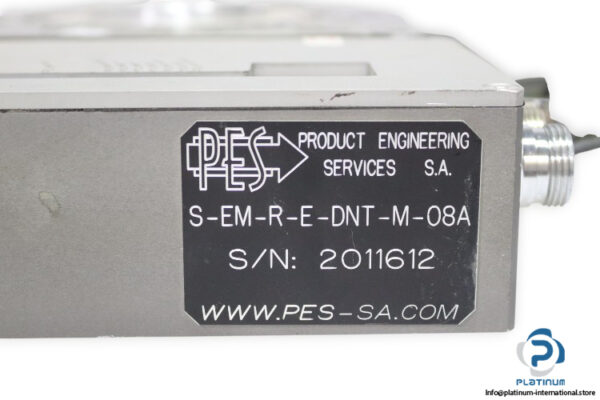

• Model: S-EM-R-E-DNT-M-08A
• S/N: 2011612
• Design: S, Sigma Series Module
• Suffix: EM (External Module), R (Robot Side), E (Electrical)
