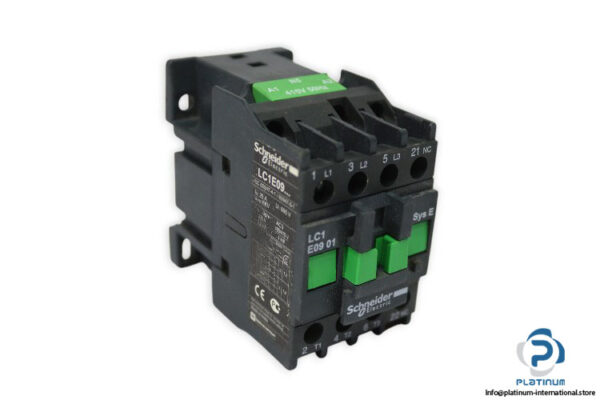

SCHNEIDER LC1E0901N5 CONTACTOR

The Schneider LC1E0901N5 is a compact 3‘pole contactor from the Easy TeSys range, built for reliable motor and power switching. It supports AC-1/AC-3/AC-3e duties, wide operational voltage up to 690 V AC, and a 415 V AC control circuit, making it suitable for industrial control panels with tight space requirements.

Manufacturer: SCHNEIDER
Type: Contactor
Model: LC1E0901N5

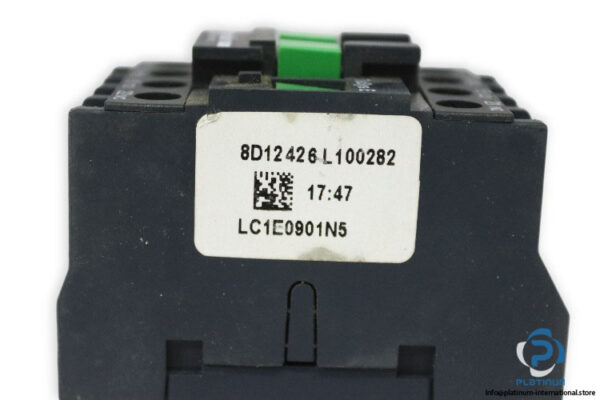

REF NO: 8D12426L100282

Technical Information

• Range: Easy TeSys
• Device Short Name: LC1E
• Poles Description: 3P
• [Ue] Rated Operational Voltage: Power circuit ‰¤ 690 V AC, 50/60 Hz
• [Ie] Rated Operational Current:
  • 9 A (at <55 °C) at ‰¤ 440 V AC, AC‘3 (power circuit)
  • 9 A (at <55 °C) at ‰¤ 440 V AC, AC‘3e (power circuit)
  • 25 A (at <55 °C) at ‰¤ 440 V AC, AC‘1 (power circuit)

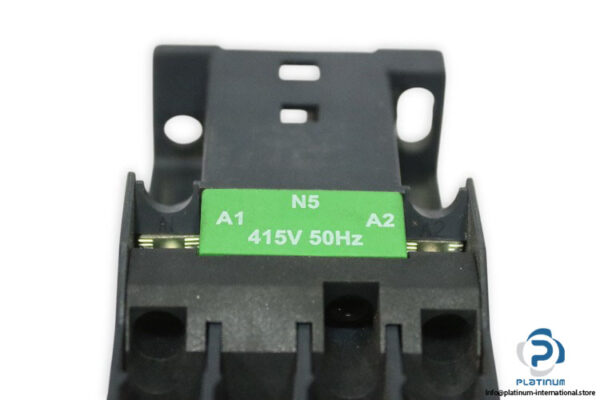

• [Uc] Control Circuit Voltage: 415 V AC, 50 Hz
• Motor Power (kW):
  • 2.2 kW at 220/230 V AC, 50/60 Hz
  • 4 kW at 380/400 V AC, 50/60 Hz
  • 4 kW at 415/440 V AC, 50/60 Hz

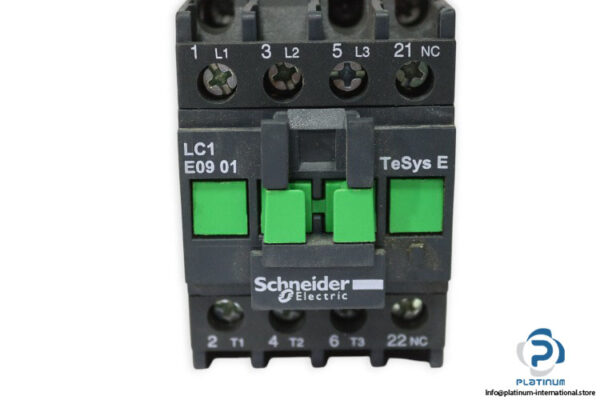

• Pole Contact Composition: 3 NO
• [Ith] Conventional Free Air Thermal Current: 25 A (at 55 °C) for power circuit

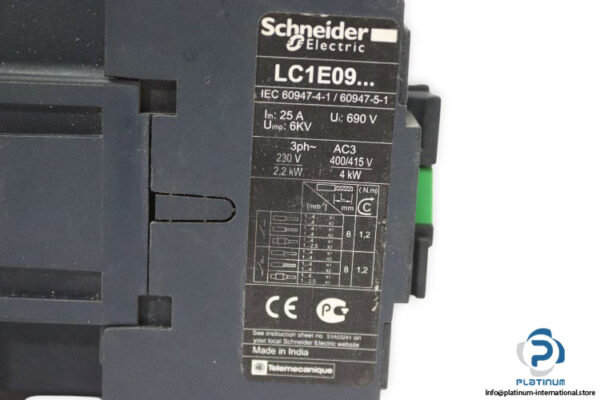

• [Ui] Rated Insulation Voltage: 690 V (IEC 60947‘4‘1)
• Overvoltage Category: III
• Pollution Degree: 3
• Auxiliary Contact Composition: 1 NC
• Height: 74 mm
• Width: 45 mm
• Depth: 80 mm
