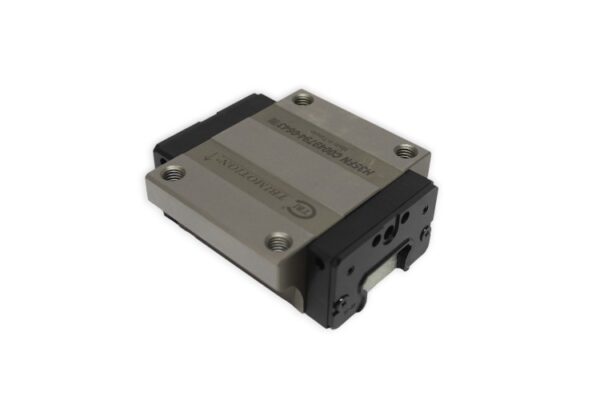

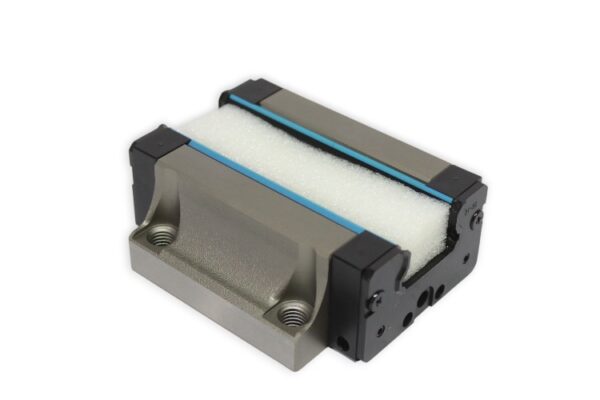

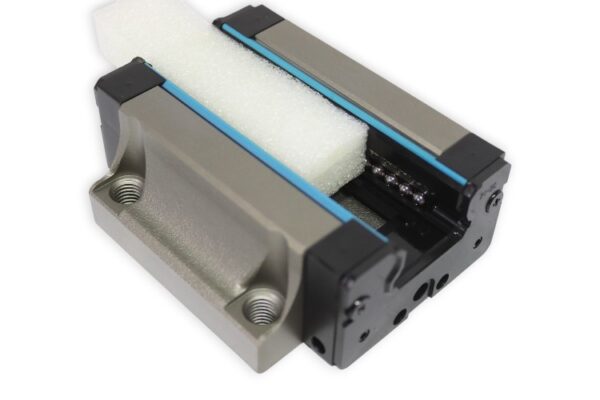

TBI TRH35FN-XN-N-Z0 LINEAR GUIDE BLOCK
The TBI TRH35FN-XN-N-Z0 is a precision linear guide block designed for smooth and accurate linear motion in industrial applications. With high assembly height, flange type design, and robust load capacity, it delivers reliable performance in demanding environments.
Manufacturer: TBI
Type: Linear Guide Block
Model: TRH35FN-XN-N-Z0

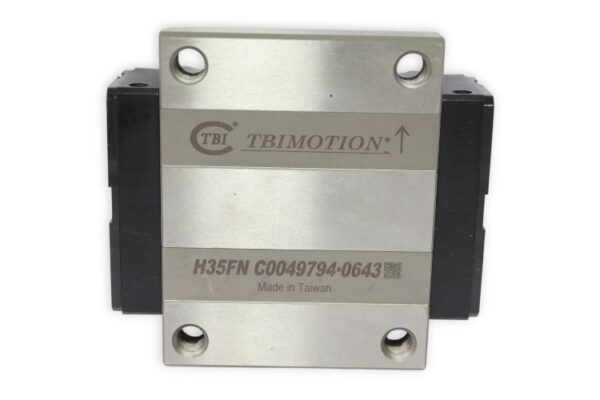

Part No.: H35FN C0049794-0643

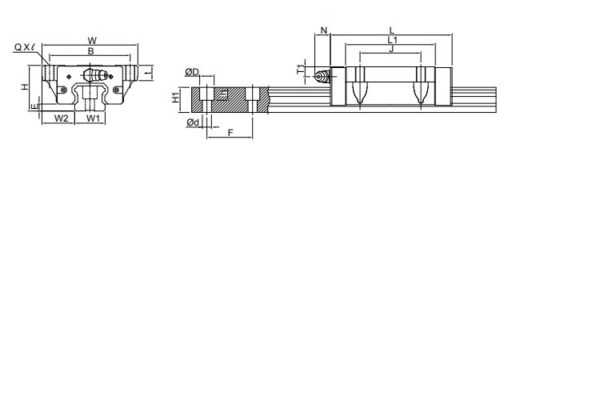

Technical Information
- Size: 35
- Height of System: 48 mm
- Height of Block: 40.5 mm
- Width: 100 mm
- Length: 109 mm
- B: 82 mm
- J: 62 mm
- Dynamic Load Rating: 49900 N
- Static Load Rating: 81800 N
- Block Type: R (Standard)
- Height of Assembly Type: H (High-Assembly)
- Flange Type: F (With Flange)
- Length of Block: N (Normal)
- Accuracy Grade: N (Normal)
- Preload: Z0 (No Preload)
- Accessory Code: XN
Note: We also provide the corresponding rails (guideways) in a wide range of lengths-please ask us if you need rails to match your bearing.
