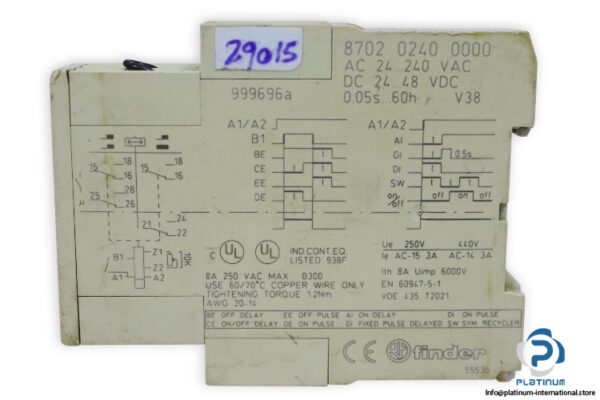

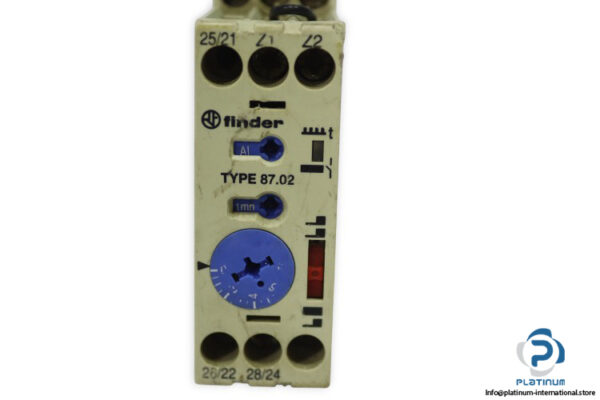

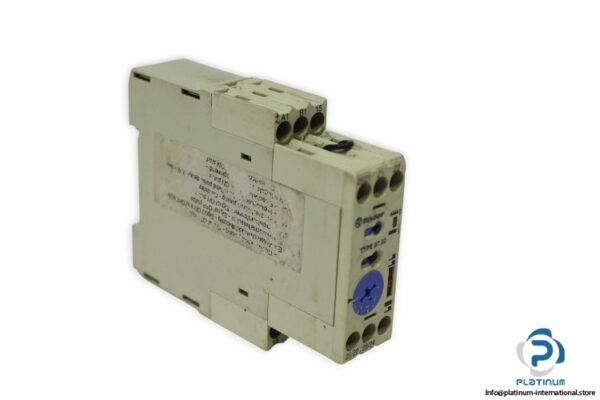

Finder 87.02 Modular Timer
The Finder 87.02 modular timer from the 87 series is a multifunctional, multi-voltage device designed for precise timing control in industrial applications. With robust construction and versatile settings, it offers reliable operation for automation systems.
Manufacturer: Finder
Type: Modular Timer
Model: 87.02
Series: 87
Ref No.: 8702 0240 0000 / 999696a
Technical Information
- Poles: 2 Pole – Multi-function and Multi-voltage
- Contact Configuration: 2 CO (DPDT)
- Rated Current / Max Peak Current: 8/30 A
- Rated Voltage / Max Switching Voltage: 250/400 VAC
- Rated Load AC1: 2,000 VA
- Rated Load AC15 (230 V AC): 400 VA
- Single Phase Motor Rating (230 V AC): 0.185 kW
- Breaking Capacity DC1: 30/110/220 V: 8/0.5/0.2 A
- Minimum Switching Load: 300 (10/5) mW (V/mA)
- Standard Contact Material: AgCdO
- Nominal Voltage (UN) AC (50/60 Hz): 24 / 240 V
- Nominal Voltage (UN) DC: 24 / 48 V
- Rated Power AC/DC (50 Hz): 5/0.5 W
- Time Range: 0.05 sec “ 60 h
