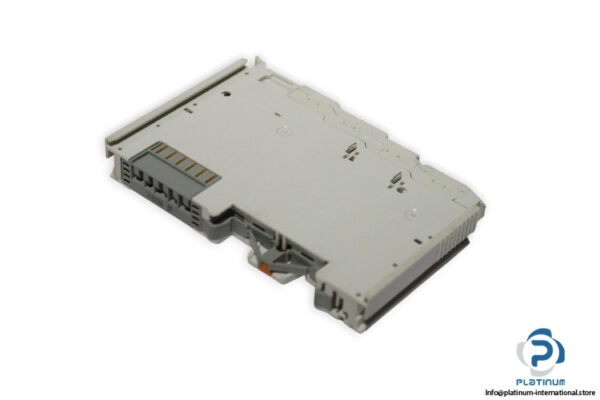

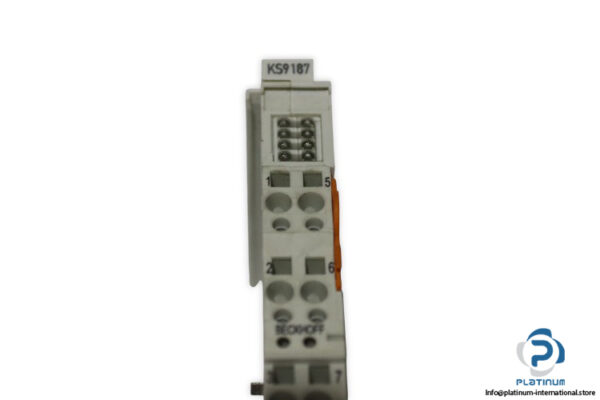

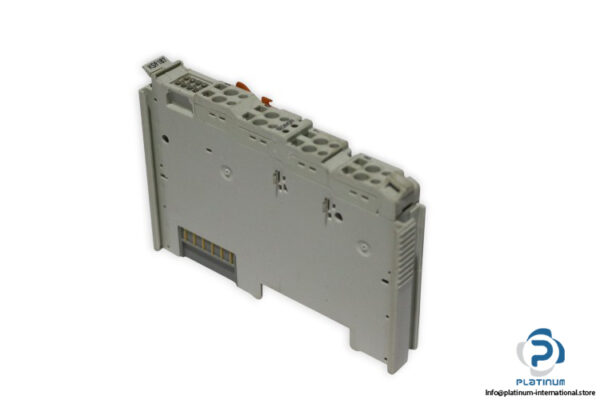

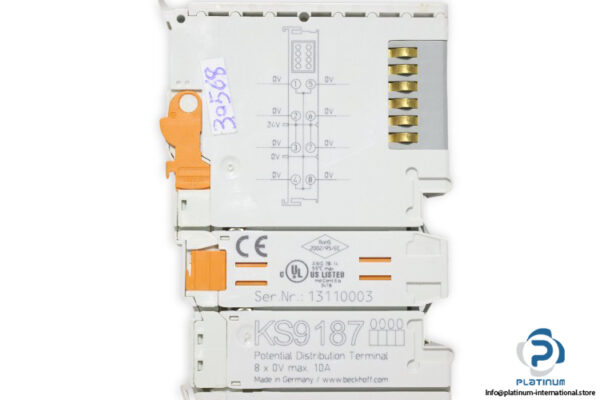

Beckhoff KS9187 Potential Distribution Terminal

The Beckhoff KS9187 is a reliable potential distribution terminal from the KS9xxx family, designed for efficient 0 V DC distribution in automation systems. With robust polycarbonate housing and pluggable wiring, it ensures secure installation and long-lasting performance.

Manufacturer: Beckhoff
Type: Potential Distribution Terminal
Model: KS9187
Serial No.: 13110003

Technical Information

• Family: KS9xxx
• Current Load: 10 A
• Distribution: 8 x 0 V DC, pluggable wiring
• Terminal Housing: Pluggable wiring level
• Material: Polycarbonate
• Dimensions (W x H x D): 1.2 cm x 10 cm x 6.8 cm
• Installation: On 3.5 cm DIN rail, conforming to EN 60715 with lock
• Mounting: Side by side via double slot and key connection
• Marking: Labeling of the BZxxx series
• Operating Temperature: -25 / +60 °C
