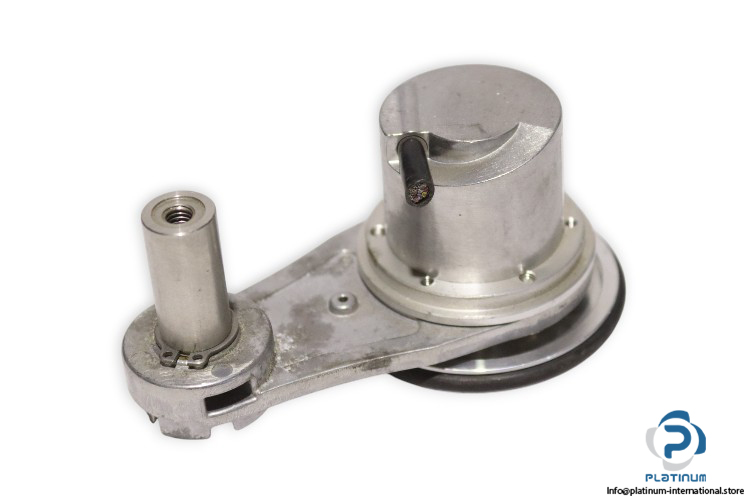

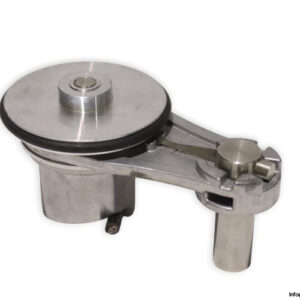

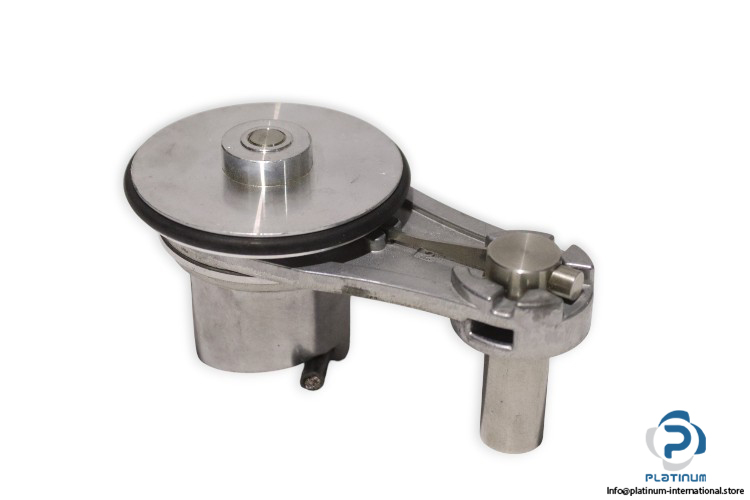

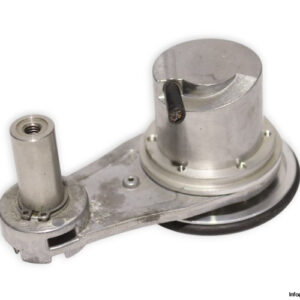

Sick DBV50E-22AZZ0S01 Measuring Wheel Encoder

The Sick DBV50E-22AZZ0S01 is a high-precision measuring wheel encoder designed for accurate length and position measurement in industrial automation. With a robust IP65 enclosure, wide temperature range, and TTL driver output, it ensures reliable operation even in demanding environments.

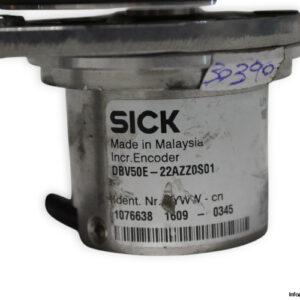

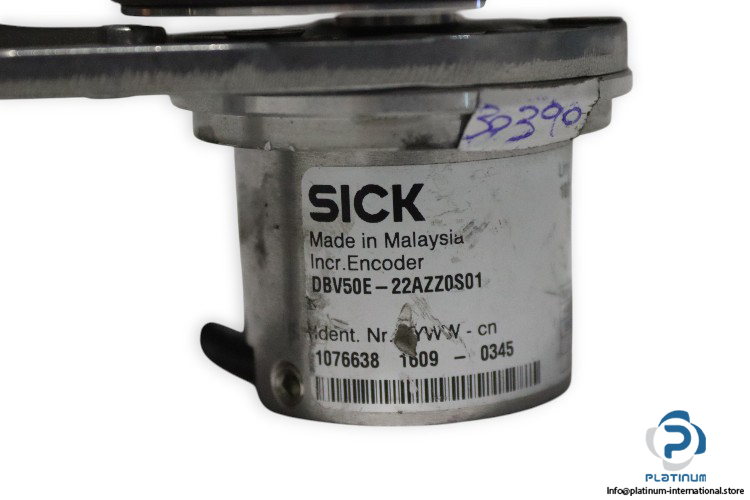

Manufacturer: Sick
Type: Measuring Wheel Encoder
Model: DBV50E-22AZZ0S01
ID No.: 1076638
YYWW-cn: 1609-0345

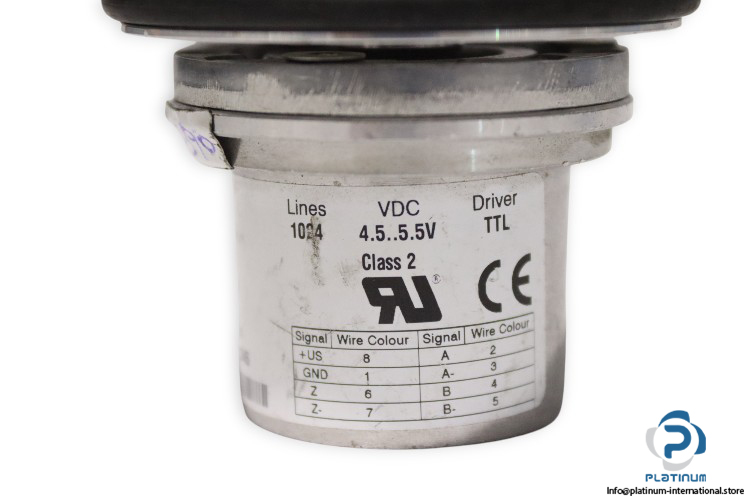

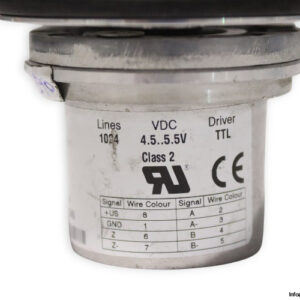

Technical information

• Voltage: 4.5 to 5.5 V DC
• Lines: 1024
• Driver: TTL
• Class: 2
• Pulses per Revolution: 1000
• Resolution in Pulses/mm: 5
• Measuring Increment (Resolution in mm/pulse): 0.2
• Operating Power Consumption (No Load): 50 mA
• Load Current Max.: 30 mA
• Measuring Wheel Circumference: 200 mm
• Enclosure Rating: IP65
• Operating Temperature Range: -35 °C to +95 °C
