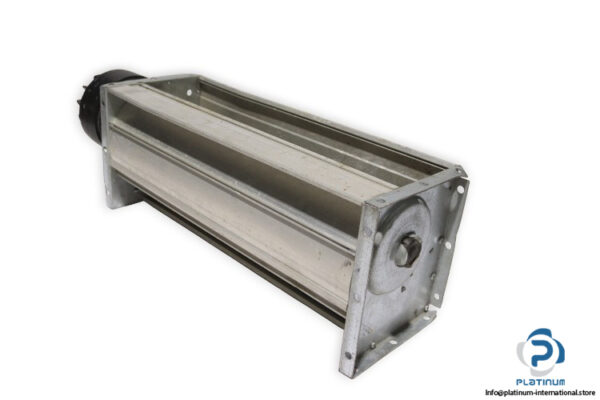

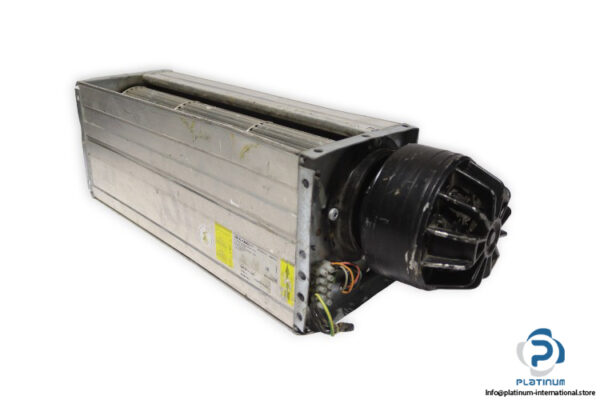

Ziehl-Abegg QK10A-2DM.48.FK Centrifugal Fan
The Ziehl-Abegg QK10A-2DM.48.FK is a high-performance centrifugal fan designed for reliable air movement and cooling in industrial and ventilation systems. Built with precision and durability, this fan ensures efficient airflow and stable operation across a wide range of applications.
Manufacturer: Ziehl-Abegg
Type: Centrifugal Fan / Cross Flow Fan
Model: QK10A-2DM.48.FK
Series: Q
Art. No.: 210917
Code: 32968764/001, 32968764

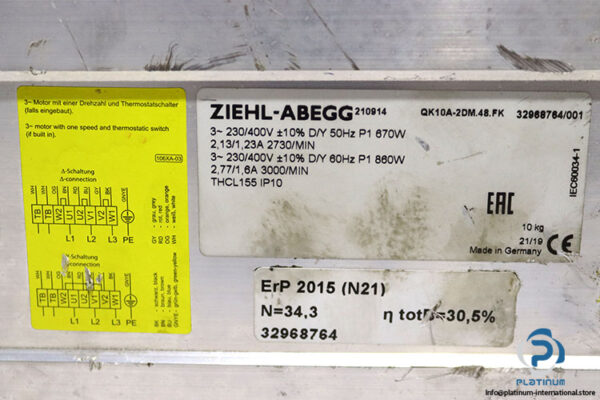

Technical Information
- Design: QK
- Size: 10
- No of Poles: 2
- Type of Current: D, three-phase alternating current
- Voltages (V AC): 230/400
- Power Rating (W): 670/860
- Speed (rpm): 2730/3000
- Current (A): (2.13/1.23), (2.77/1.6)
- Frequency (Hz): 50/60
- Pressure (Pa): 374
- Efficiency Data: ErP 2015 (N21)
- η total: 30.5 percent
- N: 34.3
- Inverter: without Inverter
- Standard: IEC60034-1
- Protection degree: IP10
- Thermal Class: THCL155
- Impeller made of: Aluminum
- Blade material / Fan housing material: Metal
This centrifugal fan is engineered for industrial cooling, HVAC systems, and air circulation units. Its durable metal housing and aluminum impeller guarantee long service life and consistent airflow even under demanding environments.
Recommendation: For optimized performance, pair this fan with energy-efficient variable speed drives or motor controllers to improve air handling precision, reduce energy consumption, and extend equipment lifespan. Ideal for use in automation cabinets, ventilation systems, and industrial machinery cooling setups.
