Manufacturer: REXROTH
Type: Ball Runner Block FLS

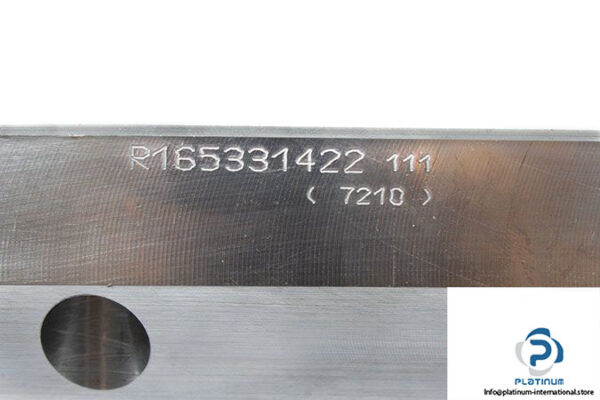

MNR: R1653 314 22

Size: 35 mm
Format: FLS – Flanged, long, standard height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 63600 N
Static Load Capacity C0 : 108000 N
Dynamic Torsional Moment Load Capacity M_t:  1370 Nm
Static torsional moment load capacity Mt0: 2320 Nm
Dynamic longitudinal moment load capacity ML: 1230 Nm
Static longitudinal moment load capacity ML0: 2090 NM
Accuracy Class: N – normal
Preload Class: C1 – low preload

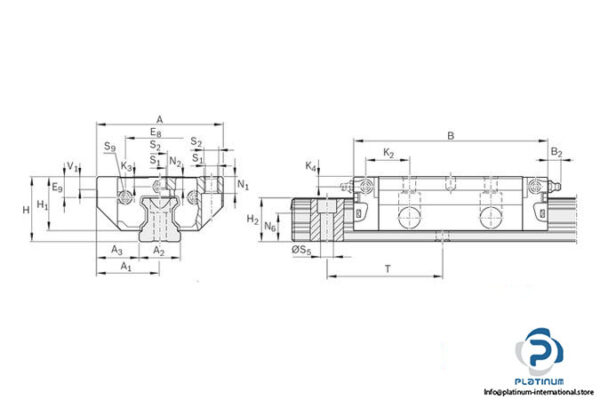

Dimensions
Width (A): 100 mm
Length (B): 139 mm
Height of system(H): 48 mm
Height of block (H₁): 40.40 mm
E1: 82 mm
E2: 62 mm
Admissible Operating Temperature: -10 °C … +80 °C
