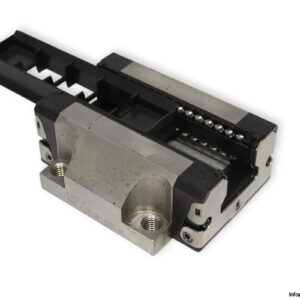

Manufacturer: REXROTH
Type: Ball Runner Block SKS
MNR: R1662 714 20

Size: 30 mm
Format: SKS, slimline, short, standard height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 15800 N
Maximum dynamic load Fmax: 6100 N
Dynamic Torsional Moment Load Capacity M_t:  270 Nm
Maximum permissible torsional moment Mt max: 105 Nm
Accuracy Class: N – normal
Preload Class: C1 – Low preload
Dimensions
Width (A): 60 mm
Length (B): 75.3 mm
Height of system(H): 42 mm
Height of block (H₁): 35.35 mm
E1: 40 mm
Admissible Operating Temperature: -10 °C … +80 °C
