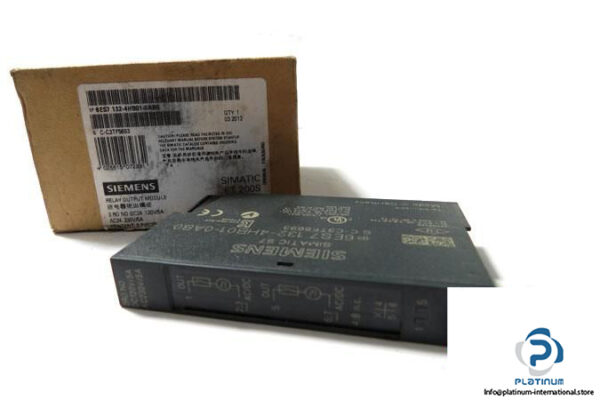

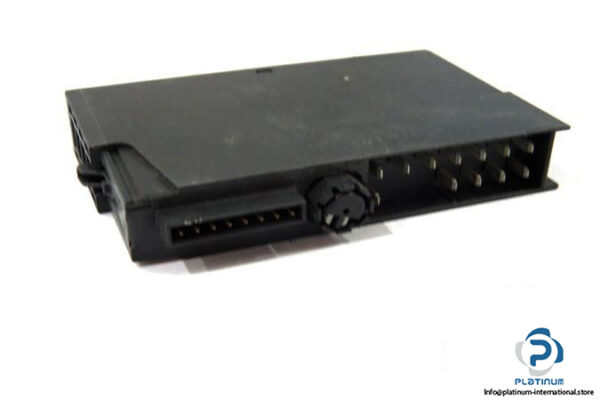

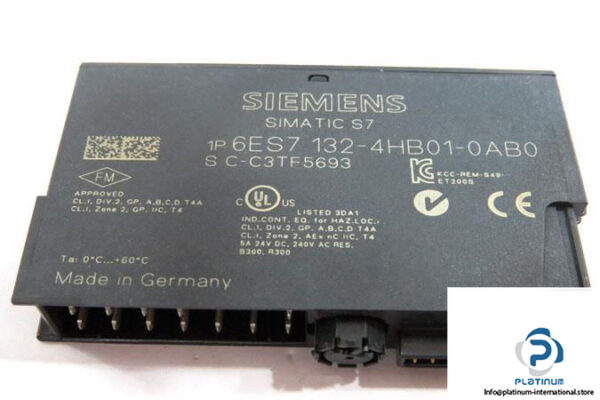

SIEMENS SIMATIC DP DIGITAL ELECTRONIC MODULE 6ES7132-4HB01-0AB0

This SIEMENS SIMATIC DP digital electronic module is engineered for reliable and efficient performance within ET 200S distributed I/O systems. It offers dual digital outputs and is optimized for industrial automation tasks requiring precise switching and low power consumption.

Manufacturer: SIEMENS
Family: SIMATIC DP for ET 200S / SIMATIC S7
Type: Digital Electronic Module
Model/REF NO: 2RO NO
MRN: 6ES7132-4HB01-0AB0

Technical Information

• No. of Digital Outputs: 2
• Rated Output Voltage (DC): 24 V
• Output Current: 8 mA
• Switching Frequency: 2 Hz (resistive/lamp load), 0.5 Hz (inductive load)
• Rated Supply Voltage: 24 VDC (from power module, with reverse polarity protection)
• Current Consumption: 30 mA (without load), max. 10 mA (from backplane bus 3.3 V DC)
• Power Loss: 0.6 W
• Thermal Continuous Current: max. 5 A
• Dimensions: 15 x 81 x 52 mm
