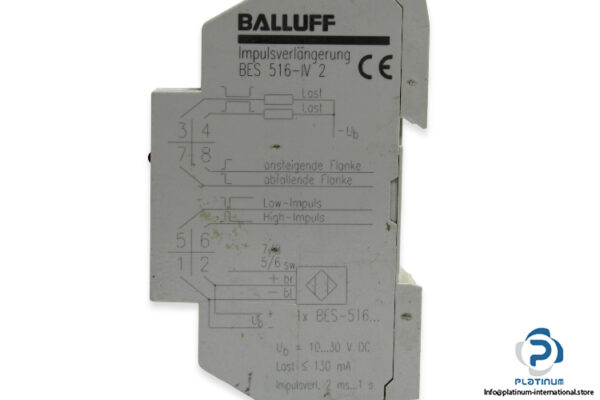

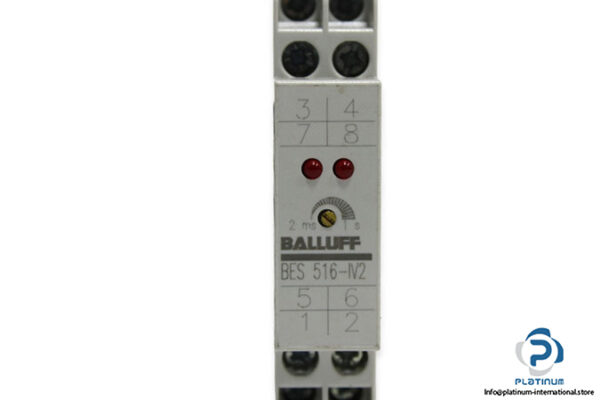

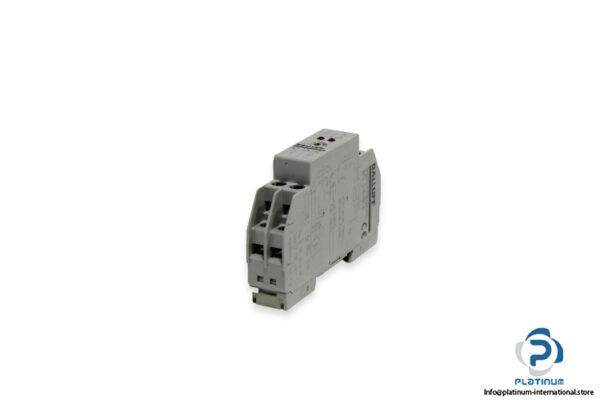

BALLUFF BES 516-IV 2 SIGNAL CONVERTER

The BALLUFF BES 516-IV 2 Signal Converter is designed for precise signal processing in industrial automation applications. With flexible PNP/NPN interface, wide voltage range, and compact housing, it provides reliable performance for demanding environments.

Manufacturer: BALLUFF
Type: Signal Converter
Model: BES 516-IV 2

Technical Information

• Operating Voltage: 10 / 30 V DC
• Current Consumption (max): 20 mA
• Connection Slots: 4-pin
• Residual Ripple (max): 3.6 Vpp
• Interface: PNP/NPN
• Duration of Time Function: 2 / 1000 ms
• Housing Material: Plastic
• Ambient Temperature: 0 / 60 °C
• IP Rating: IP20, IP40
• Dimensions: 90 x 17.5 x 58 mm
