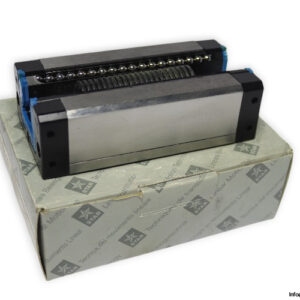

Manufacturer: REXROTH
Type: Ball Runner Block FNS
MNR: R1651 713 20

Size: 30 mm
Format: FNS – flanged, normal, standard height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 36500 N
Static Load Capacity C₀ : 48100 N
Dynamic Torsional Moment Load Capacity M_t:  630 Nm
Static torsional moment load capacity Mt0: 830 Nm
Dynamic longitudinal moment load capacity ML: 440 Nm
Static longitudinal moment load capacity ML0: 580 Nm
Accuracy Class: H – Highly accurate
Preload Class: C1 – low preload
Dimensions
Width (A): 90 mm
Length (B): 97.7 mm
Height (H): 42 mm
lock Height (H₁): 35.35 mm
Admissible Operating Temperature: -10 °C … +80 °C
