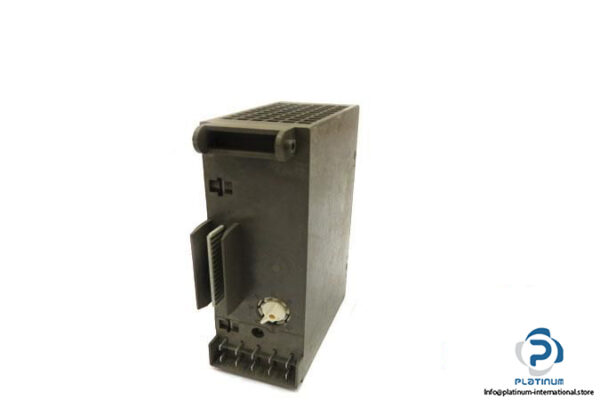

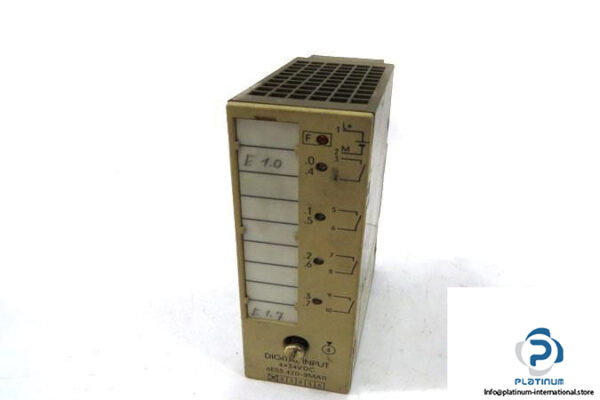

SIEMENS 6ES5420-8MA11 DIGITAL INPUT MODULE
The Siemens 6ES5420-8MA11 is a reliable 4-channel digital input module from the SIMATIC S5 family, designed for use in industrial automation environments. It offers seamless compatibility with S5-90U, S5-95U, S5-100U, ET 100U, and ET 200U systems, ensuring efficient data acquisition and control.
Manufacturer: SIEMENS
Family: SIMATIC S5
Type: Digital Input Module
Model: 6ES5420-8MA11
Uses: For S5-90U / S5-95U / S5-100U, ET 100U, ET 200U
Technical Information
- Number of Inputs: 4DI
- Input Voltage L+: 24 V DC
- Input Current at 1 Signal: 7 mA (at 24 V)
- Current Consumption from +9 V (CPU): 16 mA
- Power Loss of the Module: 0.8 W
- Length of Cable: Unshielded Max. 100 m
