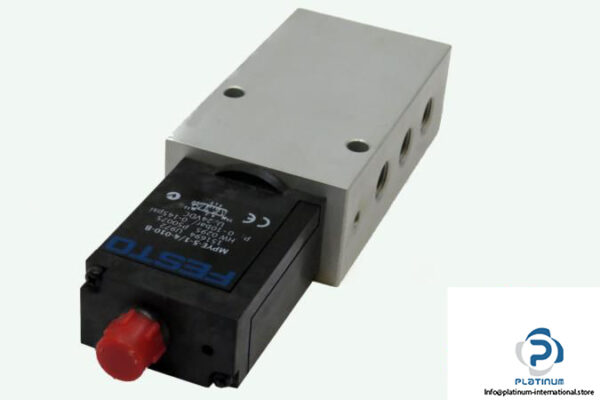

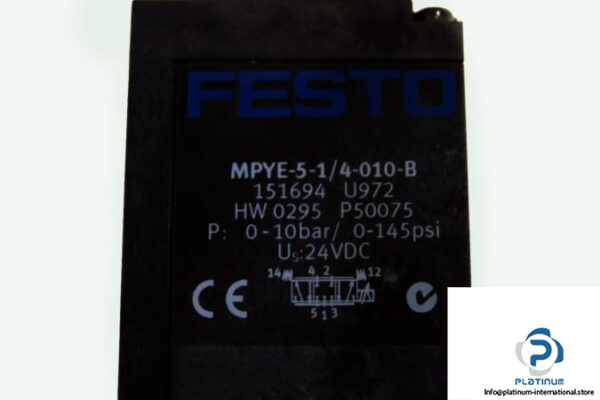

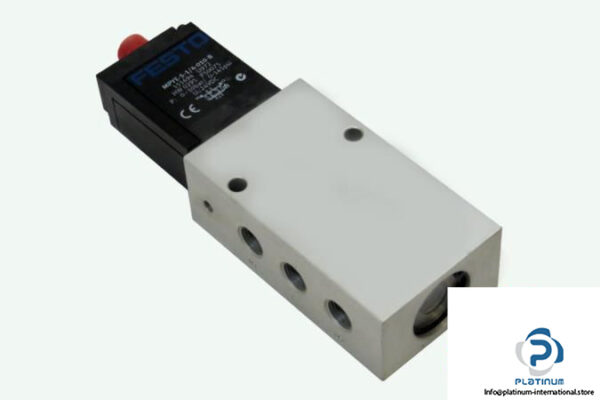

FESTO MPYE-5-1/4-010-B PROPORTIONAL DIRECTIONAL CONTROL VALVE
The FESTO MPYE-5-1/4-010-B is a high-performance proportional directional control valve designed for precise regulation in pneumatic systems. It features a 5/3 closed function and efficient electrical actuation for accurate flow control.
Manufacturer: FESTO
Type: Proportional Directional Control Valve
Model: MPYE-5-1/4-010-B
Part No.: 151694
Technical Information
- Nominal Size: 8 mm
- Valve Function: 5/3 Closed
- Actuation Type: Electrically
- Operating Pressure: 0 … 10 bar / 0 … 145 PSI
- Nominal Flow Rate: 1400 l/min
- Supply Voltage: 24 V DC
- Pneumatic Connection: G1/4
- Media Temperature: 5 … 40 °C
