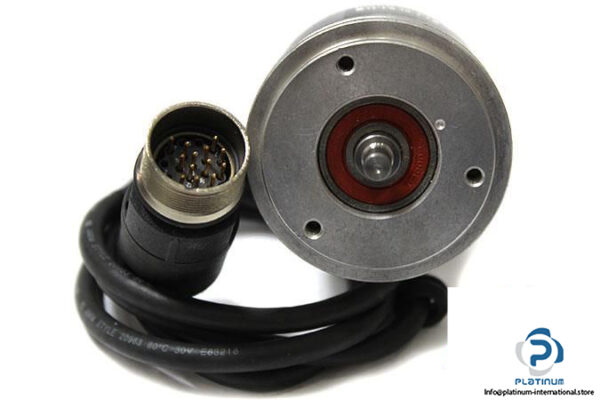

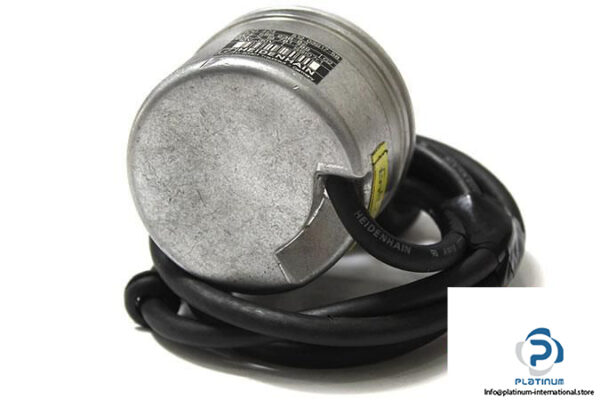

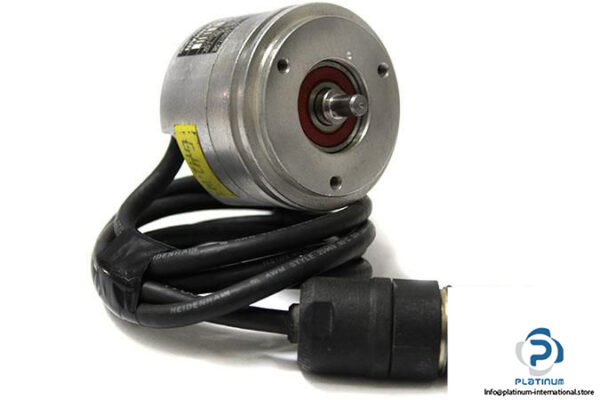

HEIDENHAIN ROQ 424-512-03S17-58 INCREMENTAL ENCODER

This high-resolution incremental encoder by HEIDENHAIN is engineered for precision motion control in demanding industrial environments. With a multiturn SSI interface and robust protection ratings, it ensures accurate performance even under harsh conditions.

Manufacturer: HEIDENHAIN
Type: Incremental Encoder

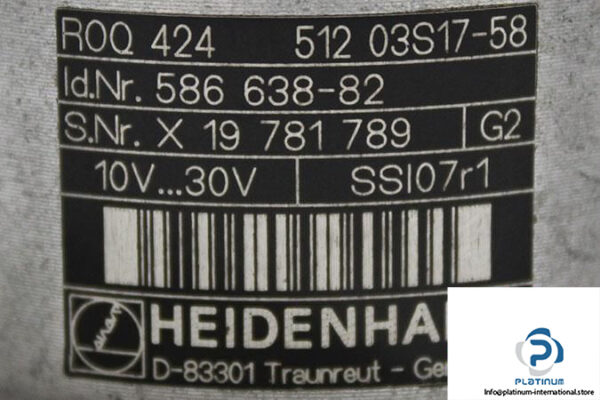

Model: ROQ 424-512-03S17-58
ID No.: 586 638-82
Serial No.: X 19 781 789

Technical Information

• Flange Design: Synchro flange
• Shaft Design: Solid shaft
• Shaft Diameter: 6 mm
• Voltage Supply: 10 / 30 VDC
• Resolution: 4096 revolutions (12 bits)
• Interface: Multiturn (SSI)
• Code: Gray
• Maximum Speed: 10 000 rpm
• Clock Frequency: 8 MHz
• Protection Class: IP67 at housing; IP64 at shaft end
• Maximum Temperature: 85°C
