Manufacturer: REXNORD

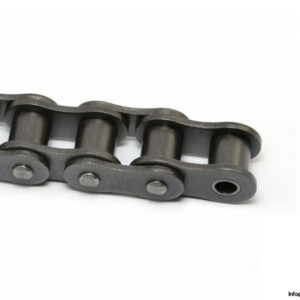

Type: Simplex Roller Chain
Model: 04B-1

DIN/ISO 606
Chain no. 04B-1
PitchP: 6 mm
Roller diameter d1: 4 mm
Width between inner plates b1: 2.8 mm
Pin diameter d2 max/L max: 1.85/6.80 mm
Pin length Lc max: 7.8 mm
Plate thickness T: 0.6mm
Ultimate tensile strength Q min: 3.0/682 kN/lbf
Average tensile strength Q0: 3.2 kN
Weight per meter q: 0.11 kg/m
