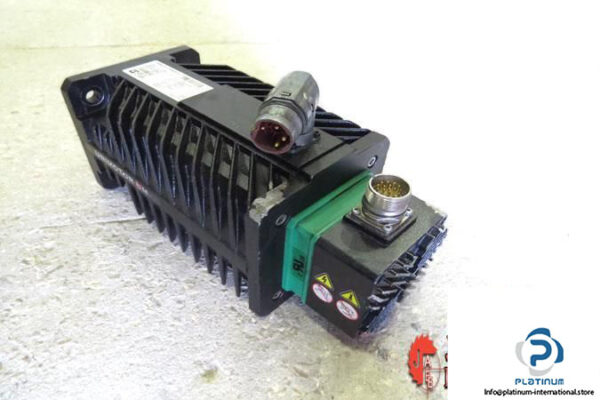

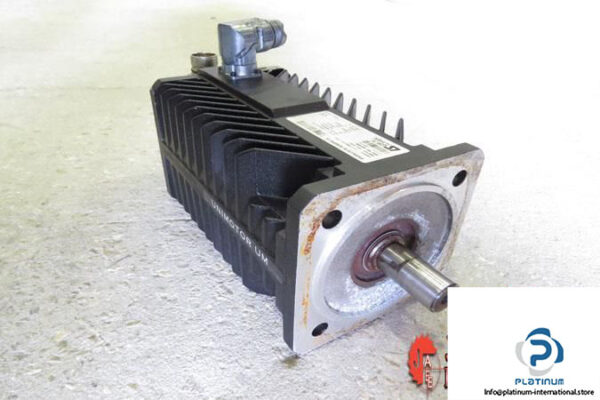

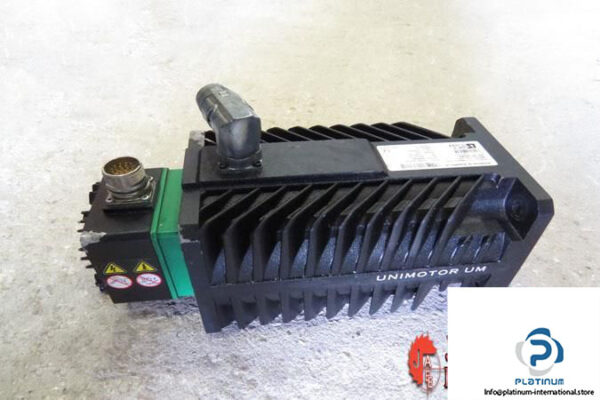

Leroy Somer 115UMB300CBCAA Servo Motor
The Leroy Somer 115UMB300CBCAA Servo Motor is a high-performance motor designed for UNIDRIVE applications. Featuring a 3000 rpm rated speed and an incremental encoder with 4096 PPR feedback, this motor delivers precise control and efficient performance for industrial automation systems.
Manufacturer: LEROY SOMER
Type: Servo Motor
Model: 115UMB300CBCAA
MNF No.: 883368
REF No.: 788174

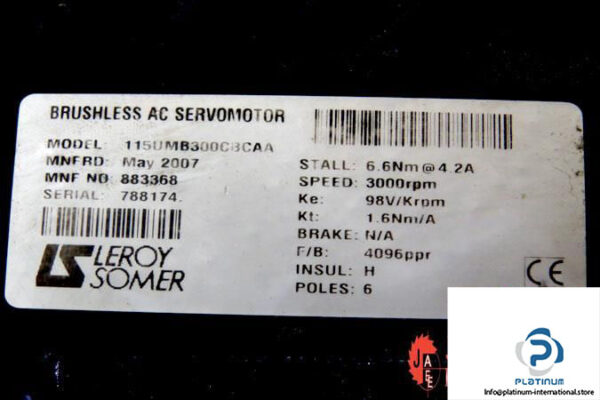

Technical Data:
- Motor Type: For UNIDRIVE
- Rated Speed: 3000 rpm
- Connection Type: Connector
- Feedback Device: Incremental Encoder 4096 PPR
- Frame Size: 115
- Operating Temperature: 0-40°C
- Number of Poles: 6
- Torque Constant: 1.6 Nm/A
- Stall Torque: 6.6 Nm
- Back EMF Constant: 98 V/Krpm
