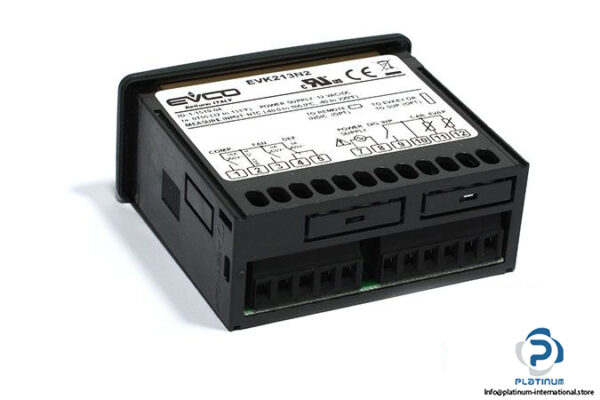

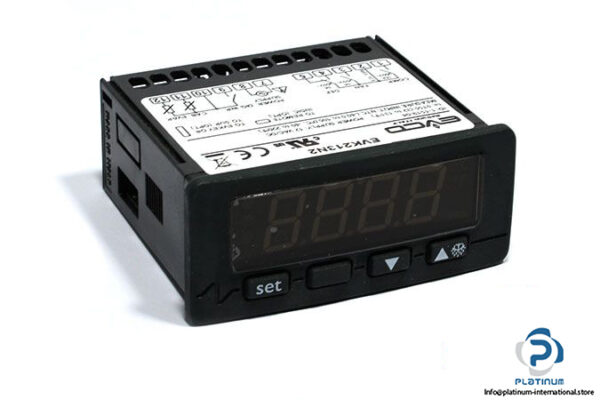

EVCO EVK213N2 TEMPERATURE CONTROLLER
The EVK213N2 temperature controller by Evco is designed for reliable thermal regulation in refrigeration and HVAC systems. With support for both NTC and PTC probes, multiple relay outputs, and IP65 frontal protection, it ensures accuracy, flexibility, and durability in demanding environments.
Manufacturer: Evco
Type: Temperature Controller
Model: EVK213N2
Technical Information
- Power Supply: 12 V AC/DC
- Frequency: 50 to 60 Hz
- Temperature Range: -40 to 105 °C for NTC Probe, -50 to 150 °C for PTC Probe
- Measure Input: 2 for PTC / NTC Probes
- Digital Input DI: 1 Relay
- Digital Output DO: 3 Relay
- Compressor Relay DO: 16 A at 250 V AC
- Defrost Relay DO: 8 A at 250 V AC
- Evaporator Fan Relay DO: 8 A at 250 V AC
- Max. Current Relay: 10 A
- Frontal Protection: IP65
- Working Temperature: 0 to 55 °C
