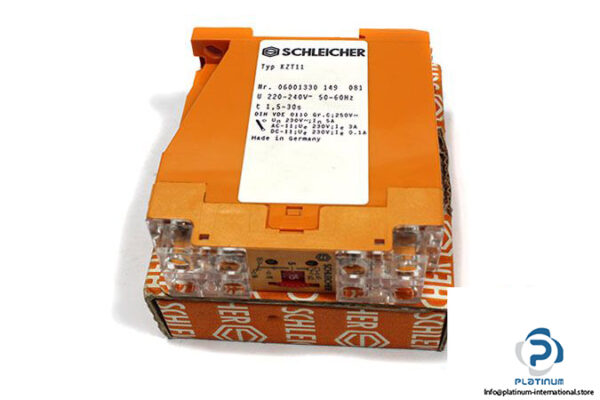

Manufacturer: SCHLEICHER

Type: ON-DELAY SINGLE-RANGE TIME RELAY

Model: KZT11

MRN: 06001330149081

New Generation Model: NGZ 11

Features: Multi-voltage for AC/DC 24 to 240 V, 1 function, ON-delay, 13 time ranges available, 1 changeover contact, 2 LEDs for function display

Rated Voltage: 220 … 240 V AC

Rated Power AC/DC: 3.5 VA-1.7 W / 1.6 W

Rated Frequency: 50-60 Hz

Time Delay: 1.5 … 30 s

Contact Rating: 230 V AC, 5 A

Din: VDE 0110

Ambient Operating Temperature Range: – 25 …  60 °C

Dimensions: 23 x 75 x 100 mm

Weight: 0.12 kg
