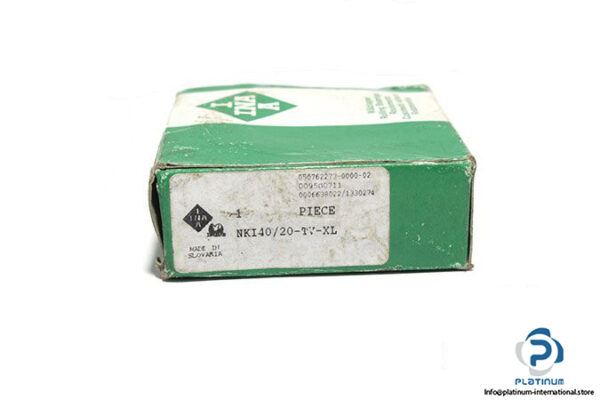

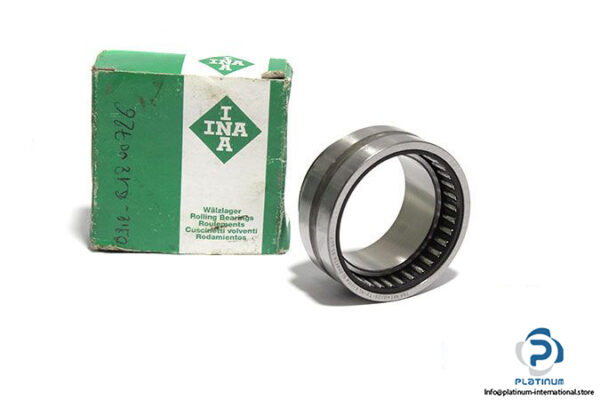

Manufacturer: schaeffler INA

Type: ‎ Needle Roller Bearing

Model: NKI40/20-TV-XL ‎

Replaces: NKI40/20-TV

Bore Diameter d: 40 mm

Outer Diameter D: 55 mm

Width B: 20 mm

Basic load ratings, radial:

Dynamic C_r: 35 kN

Static C_0r: 62 kN

Fatigue load limit n_G: 11 kN

Limiting speed: 10200 rpm

Reference speed: 5600 rpm

Cage: TV

Radial internal clearance: CN

Weight: 0.14 kg
