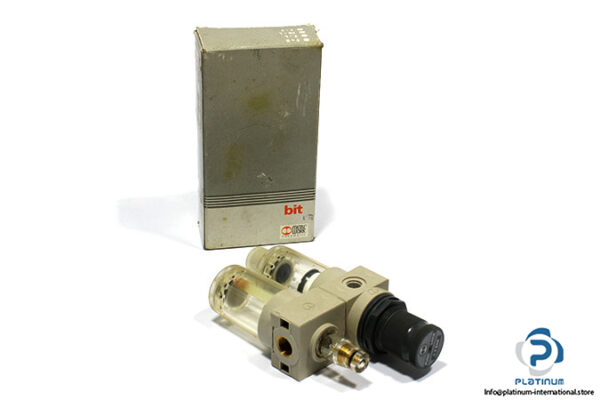

METAL WORK FR+L BIT 1/4 20 08 LUBRICATOR
This precision-engineered lubricator by METAL WORK is built to deliver optimal oil mist lubrication in compressed air systems. Ideal for enhancing tool performance and protecting components from wear.
Manufacturer: METAL WORK
Type: Lubricator

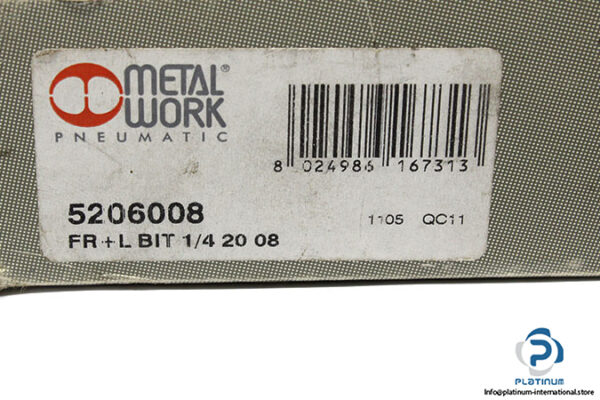

Model: FR+L BIT 1/4 20 08
Part No.: 5206008
Technical Specifications
- Threaded Port: 1/8“1/4
- Type of Lubrication: Oil Mist

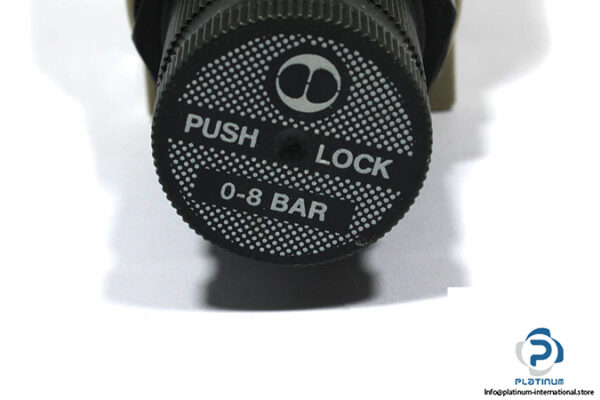

- Inlet Pressure: 0 to 8 bar
- Flow Rate at 6 bar ΔP 0.5 bar: 140 NI/min
- Flow Rate at 6 bar ΔP 1 bar: 260 NI/min
- Fluid: Compressed Air
- Max Temperature at 10 bar: 50°C
- Gauge Port: G1/8 inch
- Wall Fixing Screws: M4
