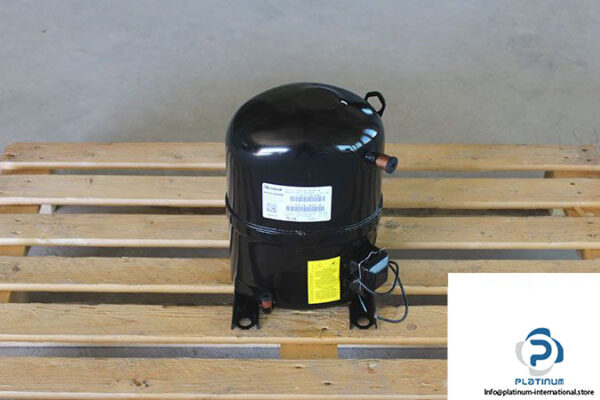

BRISTOL H82J283ABHA COMPRESSOR

The Bristol H82J283ABHA is a high-performance single-phase compressor designed for high-temperature refrigeration applications. As part of the second-generation standard line, it delivers dependable cooling with 28,000 BTU/hr nominal capacity and supports R410A refrigerant. Ideal for residential and commercial HVAC systems.

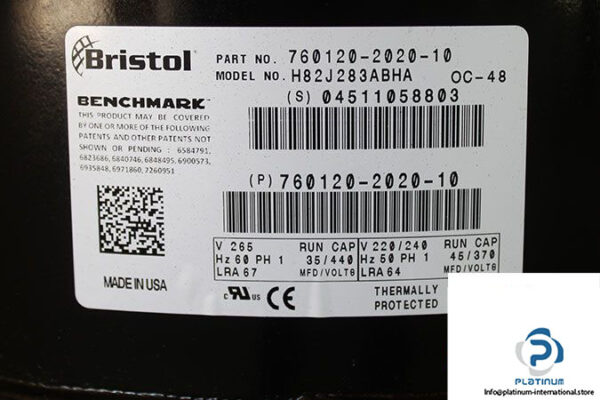

Manufacturer: Bristol
Type: Compressor
Model: H82J283ABHA
Part No.: 760120-2020-10
Code: OC-48
Serial No.: 04511058803

Technical Information

• Phase: 1~ Single Phase
• Refrigeration Application: High Temperature
• Generation: Second Generation – Basic Standard Model
• Nominal Capacity: 28,000 BTU/hr
• Horsepower: 11.0 HP
• Dimension: 7.5 x 7.5 in
• Rated Voltage: 220 to 240/265 V
• Frequency: 50/60 Hz
• Refrigerant: R410A
• LRA: 67
