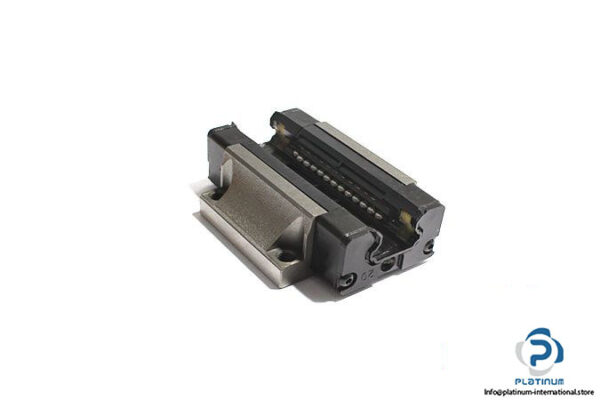

Manufacturer: EMMEVB

Type: Linear Guideway Block TRH

Model: TRH 20 A

Size: 20 mm

Block Type: Flanged block, Standard height

Preload class: Z1, Light preload

Accuracy class: N

End Cap Type: End cap with Self-lubricant part

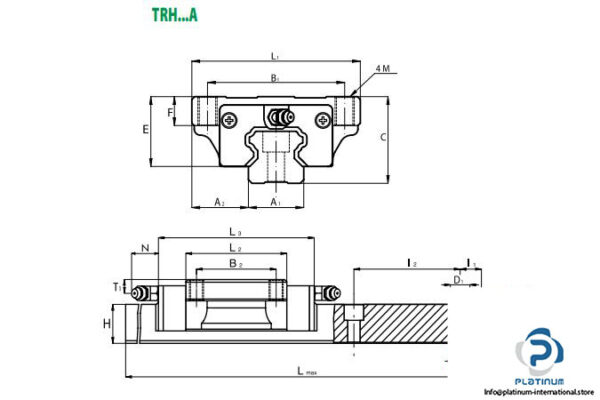

Dimensions

Block Height E: 25 mm

Block Width L₁: 63 mm

Block Length L₃: 77.8 mm

B₁: 53 mm

B₂: 40 mm

Weight: 0.43 kg
