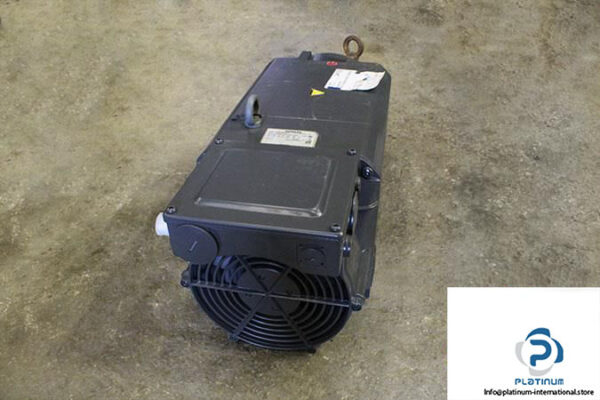

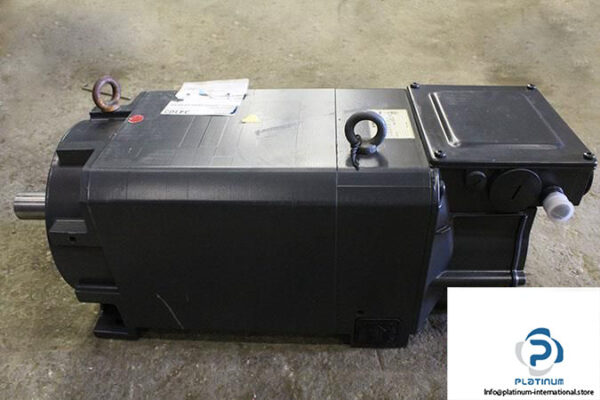

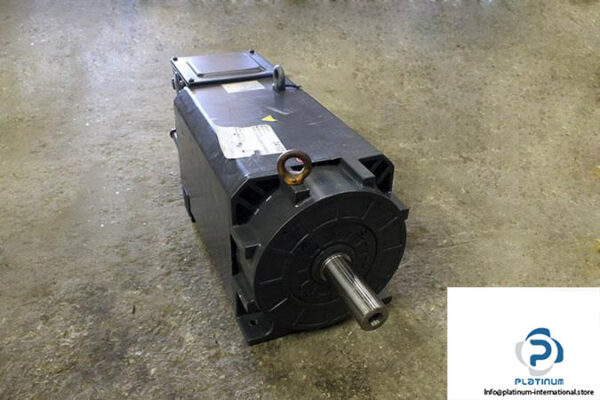

SIEMENS 1PH7137-2HD00-0BA3 ASYNCHRONOUS INDUCTION MOTOR

The Siemens SINAMICS S 1PH7 asynchronous induction motor is engineered for high-performance industrial applications. Featuring robust construction, precision speed control, and continuous duty operation, this motor is ideal for integration into automated systems.

Manufacturer: SIEMENS
Type: Asynchronous Induction Motor
Family: SINAMICS S 1PH7
MRN: 1PH7137-2HD00-0BA3
No.yf: B029 9446 01 001

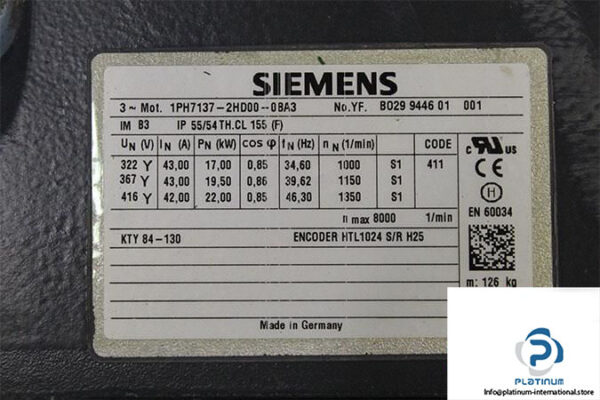

Technical Information

• Encoder System: Incremental encoder HTL 1024 S/R H25
• Fan: External fan unit, heavy-gauge threaded cable entry in terminal box
• Rated Voltage: 322 / 367 / 416 V
• Rated Frequency: 34.6 / 39.62 / 46.3 Hz
• Rated Power: 17 / 19.5 / 22 kW
• Rated Speed: 1000 / 1150 / 1350 rpm
• Rated Current: 43 / 43 / 42 A
• Max Speed: 8000 rpm
• Shaft Height: SH132
• Moment of Inertia: 0.109 kg·m²
• Terminal: IM B3 (IM V5, IM V6)
• Thermal Class: 155F
• Protection: IP55 / IP54
• Duty: S1
