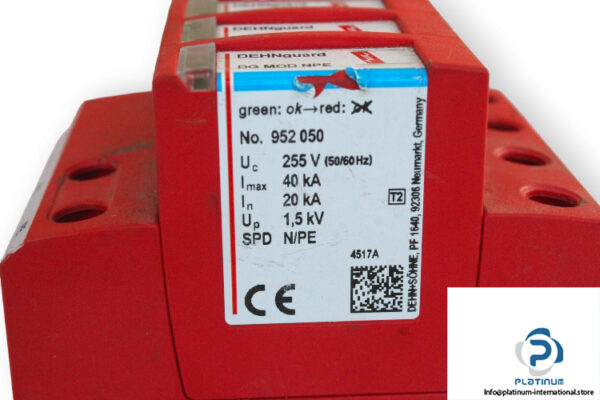

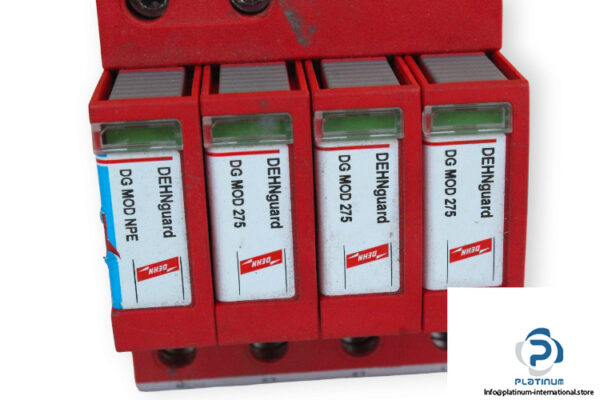

DEHN DG MOD NPE BASED PROTECTION MODULE

Manufacturer: DEHN
Type: Based protection module
Model: DG MOD NPE
art No: 952 050

Operating Voltage: 255 V AC
Nominal discharge current: 20 … 40 kA
Voltage protection level: 1.5 kV
Dimension: 45 X 18 X 51 mm

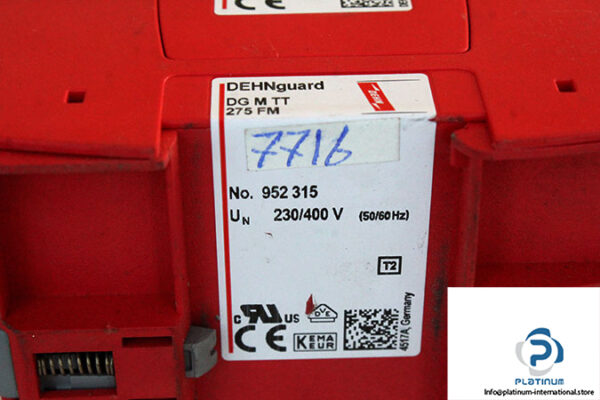

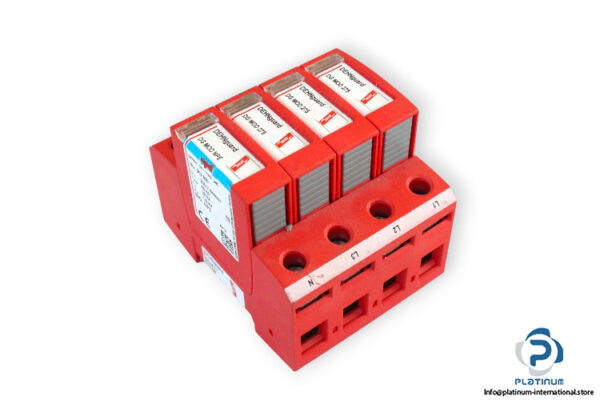

             DEHN DG M TT 275 FM MODULAR SURGE ARRESTER

Manufacturer: DEHN
Type: Modular surge arrester
Model: DG M TT 275 FM
art No: 952 315

Nominal Voltage: 230 … 40 V AC
frequency: 50 … 60 Hz
Nominal discharge current: 20 … 40 kA
Voltage protection level: 1.5 kV
Response time: 25 ns/ 100 ns
No. of Ports: 1
Capacity: 4 Modules
Contact Configuration: 1 Changeover (CO)
Contact Voltage: 250 V AC/ 250 … 75 V DC
Contact Current: 0.5 A (AC), 0.1 … 0.5 A (DC)
Operating Temperature: -40 … 80 °C
Degree of protection: IP20
Dimensions: 90 X 72 X 66 mm
