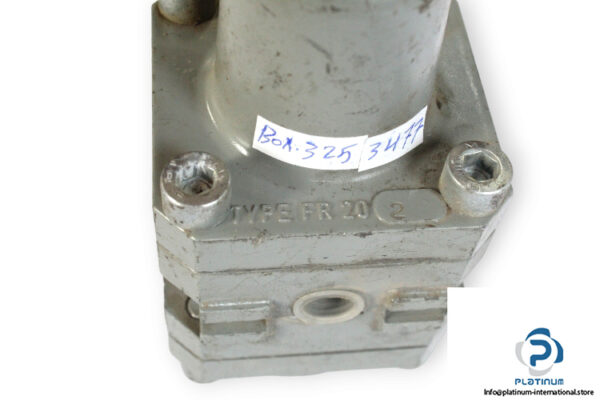

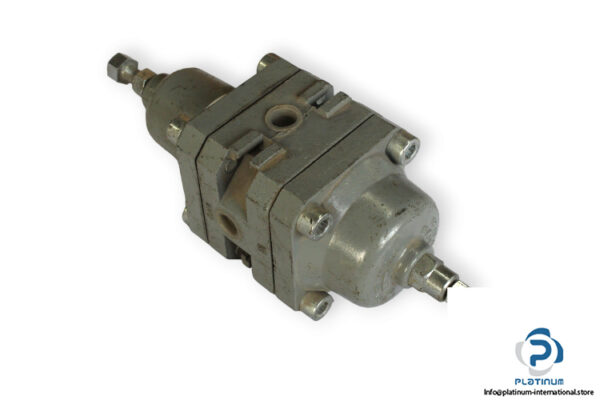

FR 20 FILTER REGULATOR
The FR 20 Filter Regulator is engineered for precise air filtration and pressure control in pneumatic systems. With a compact design and high performance, it supports efficient air regulation in demanding industrial environments.
Type: Filter Regulator
Model: FR 20
Technical Information
- Fluid: Air
- Output Pressure Range: 0.2 “ 2 bar
- Max. Supply Pressure: Max. 15 bar
- Air Flow: 2.5 to 9 m³/h
- Maximum KV: 0.7
- Filtration: 5 micrometer
- Gauge Port Size: PT (Rc) 1/8
- Body Material: Aluminum die-cast
- Pneumatic Connection: G1/4
