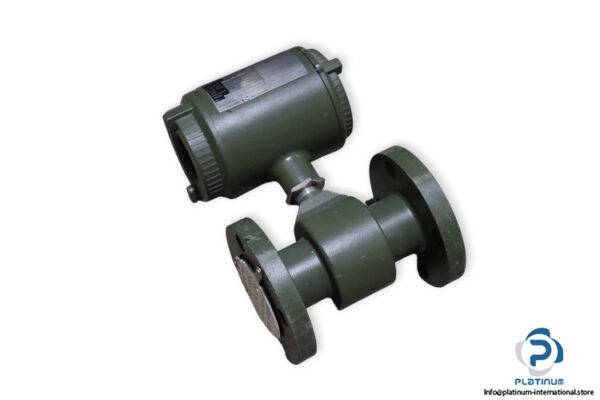

Yokogawa SE205NE Magnetic Flowmeter

The Yokogawa SE205NE is a reliable magnetic flowmeter from the ADMAG SE series, designed for precise fluid measurement in industrial applications. With explosion-proof construction, IP67 protection, and stainless steel electrodes, it ensures safe and accurate flow monitoring under demanding operating conditions.

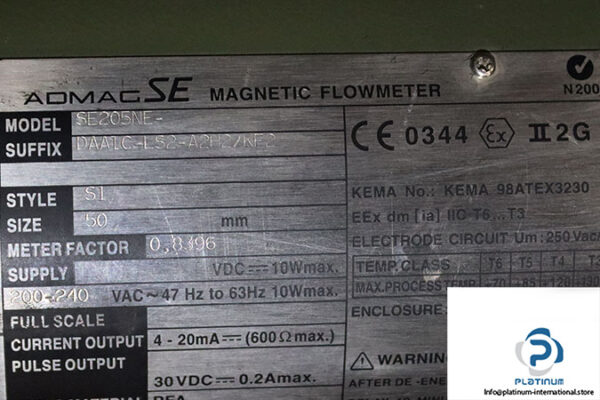

Manufacturer: Yokogawa
Type: Magnetic Flowmeter
Model: SE205NE
Suffix: DAALC-L52-A2H2/KE2
Kema Part No.: KEMA 98ATEX3230
Style: S1
Series: ADMAG SE
Part No.: D1 M4 104 957

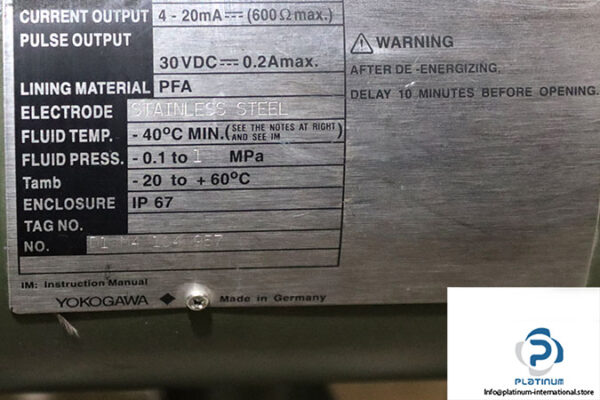

Technical information

• Size: DN50
• Fluid Pressure: 0.1 to 1 MPa / 1 bar to 10 bar
• Voltage: 200“240 V AC
• Material: Carbon Steel
• Current Output: 4“20 mA
• Temperature Range: -20 to +60 °C
• Pulse Output: 30 VDC, 0.2 A Max
• Fluid Temperature: 40 °C Min
• Frequency: 47“63 Hz
• Meter Factor: 0.89396
• Supply: 10 W Max
• Electrodes: Stainless Steel
• Enclosure Protection [IP]: 67
• Explosion Proof: II 2G
