Manufacturer: THK

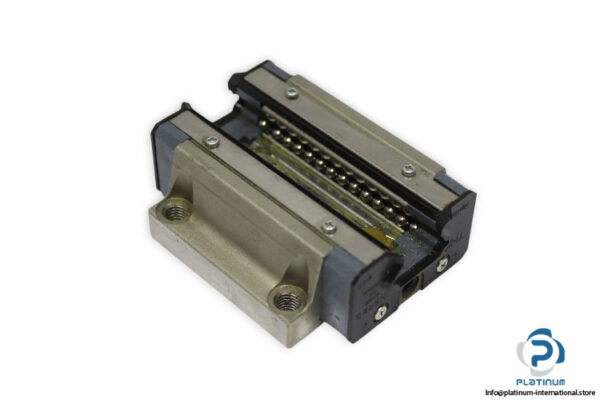

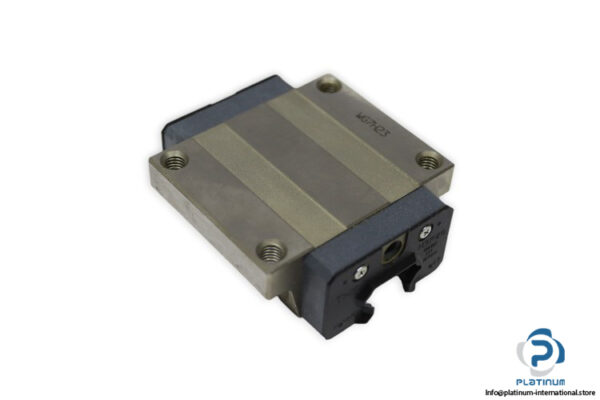

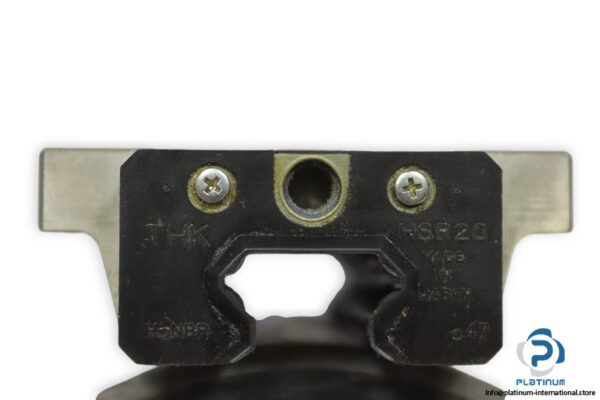

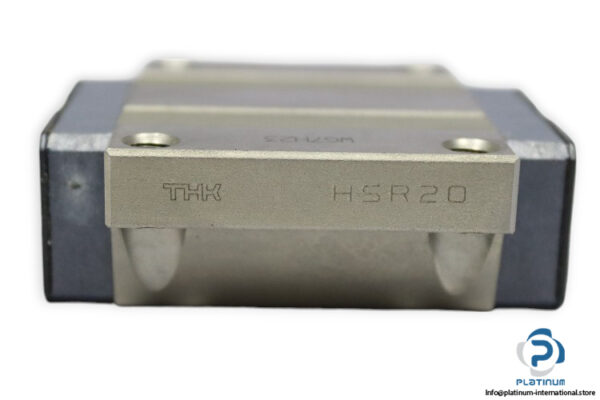

Type: LINEAR GUIDEWAY BLOCK HSR
Model: HSR 20 C
Size: 20 mm
Dimensions
Total Height M: 30 mm
Block Width W: 63 mm
Block Length L: 74 mm
Block Height K: 26 mm
Type of LM block: C
Block Type: Flange Type
Grease nipple: B-M6F
Basic Load Ratings:
Dynamic C: 19.8 kN
Static C0: 27.4 kN
Mounting Hole: 4 tapped holes
