Manufacture: Abb
Type: Mini Reversing Contactor

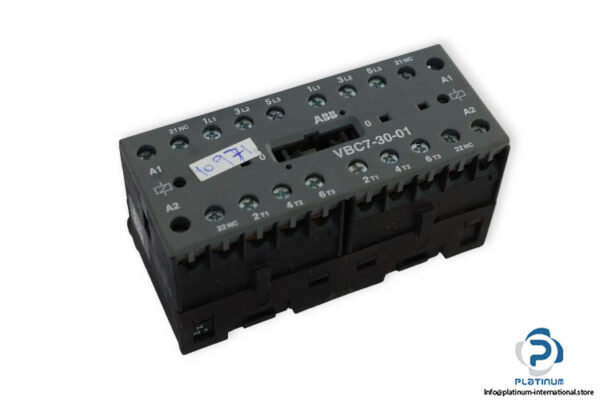

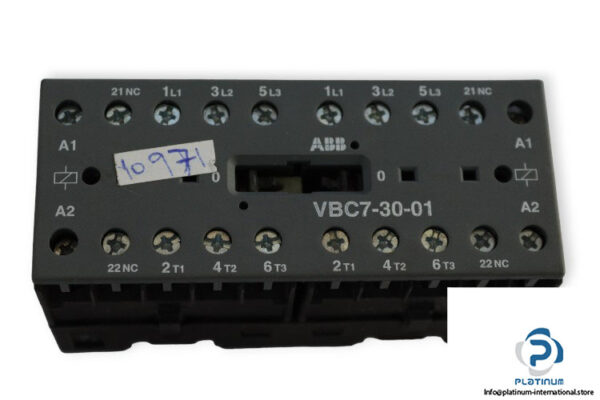

Model: VBC7-30-01

Control Supply Voltage: 24 V DC
Contact: 2 Normally closed
Power Loss at Rated Operating Conditions AC-1 per Pole: 1.4 W
No. of poles: 3
Rated Operational Voltage: Auxiliary Circuit 690 V AC, Auxiliary Circuit 250 V DC, Main Circuit 690 V AC, Main Circuit 220 V DC
Pollution Degree: 3
Rated Insulation Voltage Ui: 690 V
Rated Impulse Withstand Voltage (Uimp): 6 kV
Rated Operational Power AC-3 (Pe): 5.5 kW @400 V
Terminal Type: Screw Terminals
Protection Class IP: IP20
Ambient Air Temperature Operation: -20 … +55 °C
Dimensions (W x D x H): 96.2 x 57.5 x 46.7 mm
