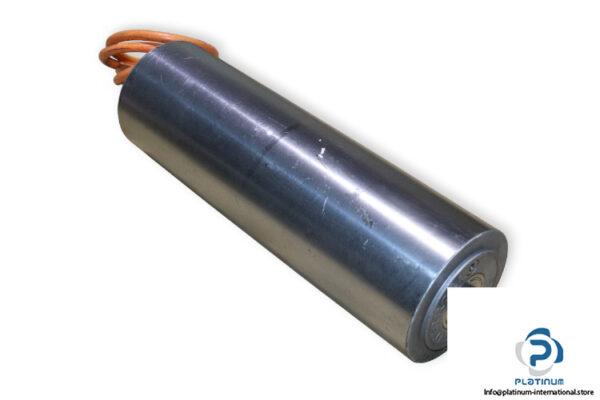

Interroll 113 I Drum Motor

The Interroll 113 I drum motor is a compact and efficient drive solution for conveyor systems. Built with high power density, protection class IP66, and FDA-approved lubrication, it ensures reliable performance in demanding industrial applications.

Manufacturer: Interroll
Type: Drum Motors
Model: 113 I

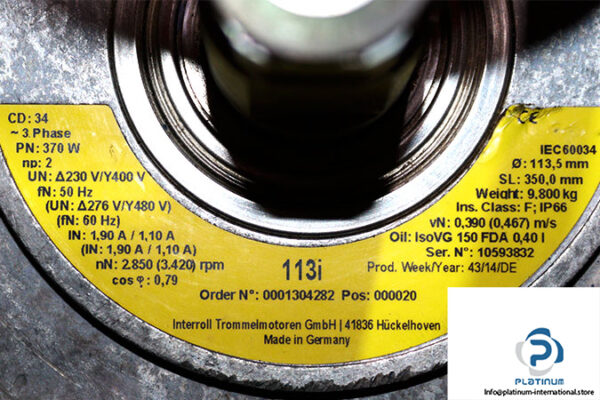

Technical information

• Phase: 3
• Circumferential Speed of Drum Tube: 0.467 m/s
• Drum Tube Diameter: 113.5 mm
• Drum Width (SL): 350.0 mm
• Rated Power: 370 W
• Frequency: 50/60 Hz
• Rated Voltage at 50 Hz: 230/400 V (Delta/Star)
• Rated Current at 50 Hz: 1.9/1.1 A
• Rated Speed at 50 Hz: 3420 rpm
• Rated Voltage at 60 Hz: 276/480 V (Delta/Star)
• Rated Current at 60 Hz: 1.9/1.1 A
• Rated Speed at 60 Hz: 2850 rpm
• Power Factor: 0.79
• Number of Poles: 2
• Oil Type: ISO VG 150 FDA
• Oil Quantity: 0.4 L
• Protection Class: IP66
• Insulation Class: F
