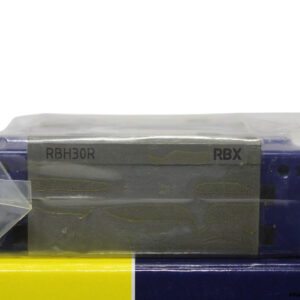

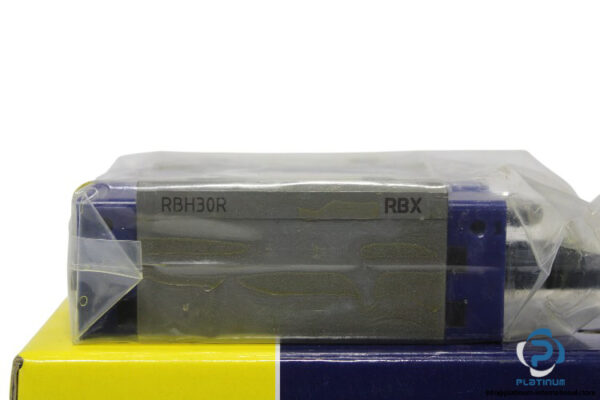

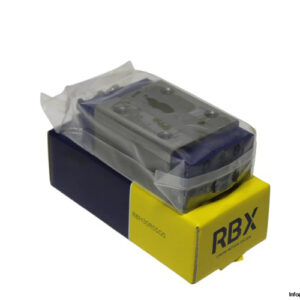

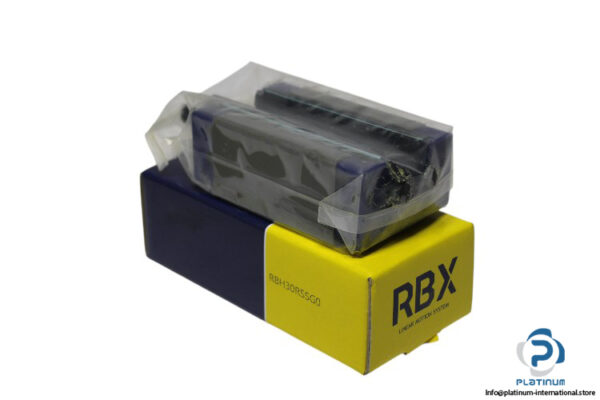

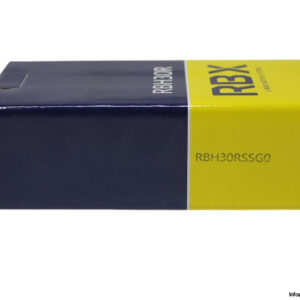

Mecaline RBX LINEAR GUIDEWAY BLOCK RBH30RSS G0
The Mecaline RBX LINEAR GUIDEWAY BLOCK RBH30RSS G0 is a robust and efficient rectangular linear guideway block designed for industrial applications. Engineered for durability and precision, it features a dynamic load capacity of 50.4 kN and a static load capacity of 57.1 kN, making it ideal for high-load linear motion systems.
🔧 Technical Specifications:
- Manufacturer: Mecaline RBX
- Type: Linear Guideway Block
- Model: RBH30RSS G0
- Size: 30
- Dimensions:
- Total Height (H): 45 mm
- Height of Block (H-H3): 37.5 mm
- Block Width (W): 60 mm
- Block Length (L): 97.8 mm
- B: 40 mm
- C: 40 mm
- Block Type: R, Rectangular standard type
- Basic Load Ratings:
- Dynamic (C): 50.4 kN
- Static (C0): 57.1 kN
- Model No. of Linear Motion Guide: RBH30
- Type of Seal: SS, End seal + Inside seal
- Symbol of Clearance: G0
This rectangular standard type guideway block is perfect for applications requiring high precision and load capacity. Its durable construction and advanced sealing system ensure reliable performance in demanding environments.
