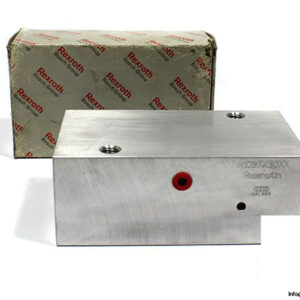

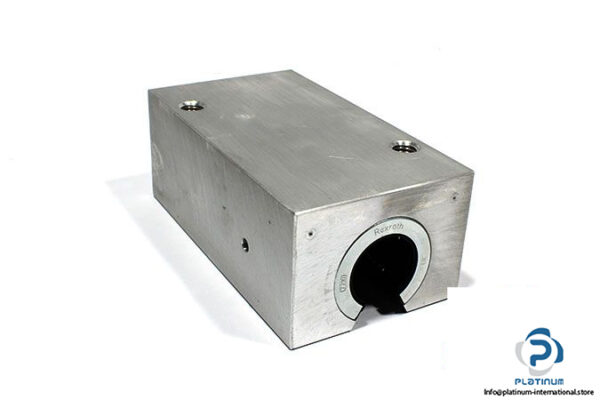

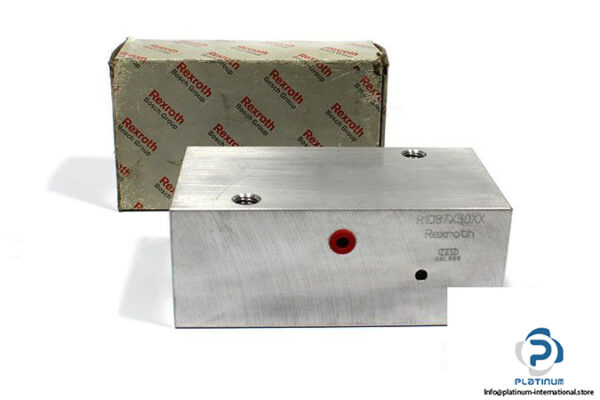

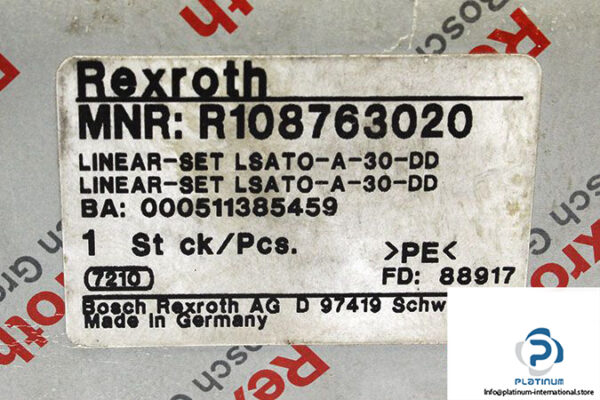

REXROTH R108763020 LINEAR SET WITH SUPER LINEAR BUSHING A

Manufacturer: BOSCH REXROTH

Type: Linear Sets with Super Linear Bushings A, Tandem, Open Type

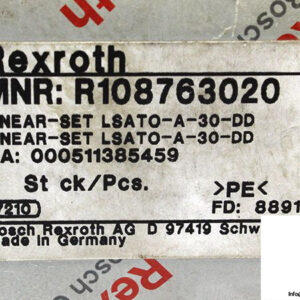

MNR: R1087 630 20

Model: LSATO-A-30-DD

Shaft diameter d: 30 mm

Design type: Tandem, Open Type

Housing Format: Aluminum

Dynamic Load Capacity C: 8150 N

Static Load Capacity C₀: 5760 N

Friction Force F_R: 2.5 N

Breakaway Force: 6 N

Maximum Acceleration Travel a_max: 150 m/s²

Maximum Permissible Speed v_max: 3 m/s

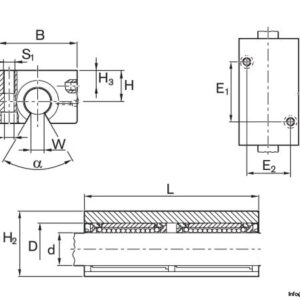

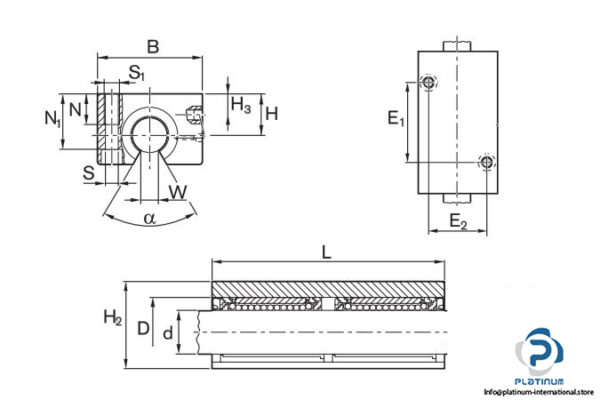

Dimensions:

B: 84 mm

L: 152 mm

H₂: 60 mm

E₁: 85 mm

E₂: 62 mm

Seals: With two integrated wiper seals

Operating temperature: -10… +80 °C

Weight: 1.66 kg
