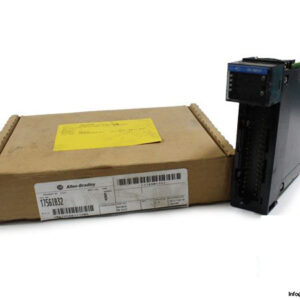

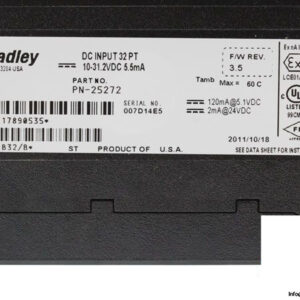

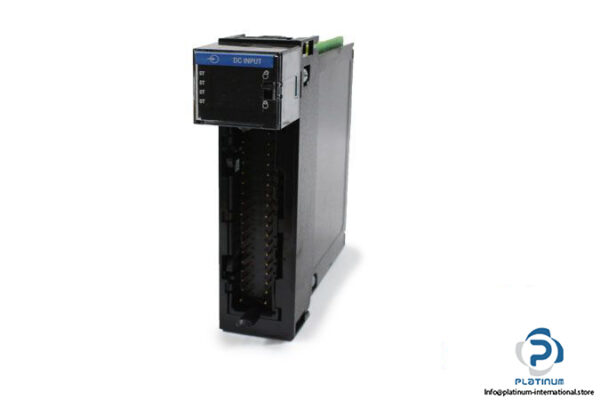

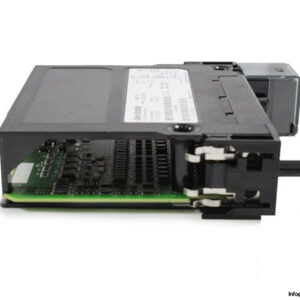

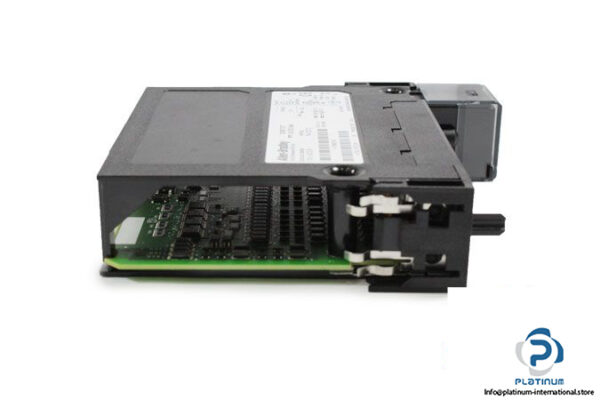

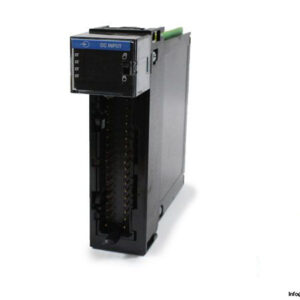

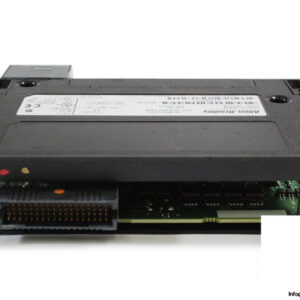

Manufacturer: ALLEN-BRADLEY

Type: Digital Dc Input Module

Model: 1756-IB32/B

Family: SLC 500

Part No.: 25272

Number of Inputs: 32

Module Location: 1756 ControlLogix Chassis

Input Voltage: 12 … 24 VDC Sink

Operating Voltage Range: 10 … 31.2 VDC

Input Delay Time: 420 microseconds plus selected filter time

Power Dissipation: 6.2 W at 60 degrees Celsius

Min. Operating Current: 2 … 5.5 mA

Backplane Current: 120 mA at 5 V, 2 mA at 24 V

Backplane Power: 0.66 W

Operating Temperature: 0 … 60°C

Weight: 0.32 Kg
