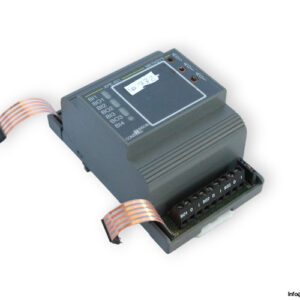

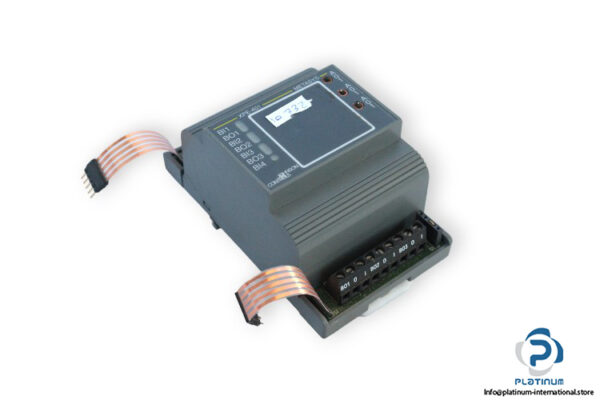

Manufacture: Johnson Controls
Type: Expansion Module

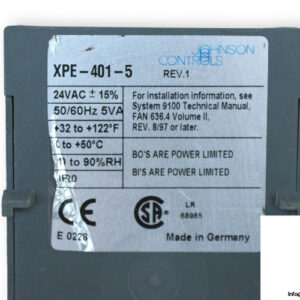

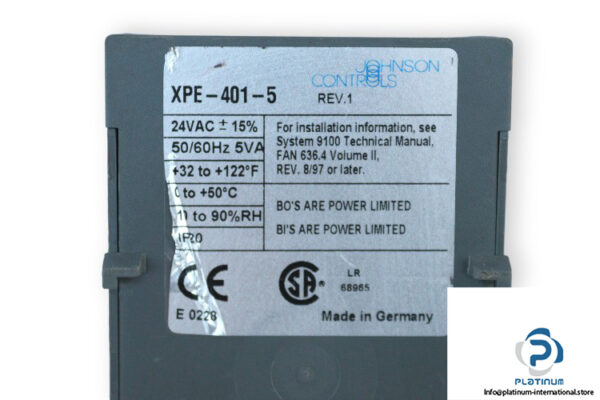

Model: XPE-401-5
Series: METASYS

No. of Binary Inputs: 4
No. of Binary Outputs: 3
Voltage: 24 V AC
Frequency: 50/60 Hz
Power Consumption: 5 VA
Terminations Inputs: 0.5…1.5 mm² (20…16 AWG) stranded cable 0.5…2.5 mm² (20…14 AWG) solid cable (XPE-411 with disconnect terminals)
Module Supply Bus (24 VAC): 5-pin ribbon cable provided with module, end-of-bus jumper provided with module
Relay Outputs: 3 binary outputs, electrically latching relays
Contact voltage ratings:
• 250 VAC, 750 VA
• 250 VDC, 30W
• 24V (AC/DC), 70W

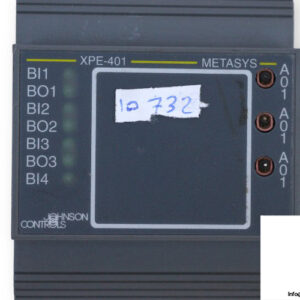

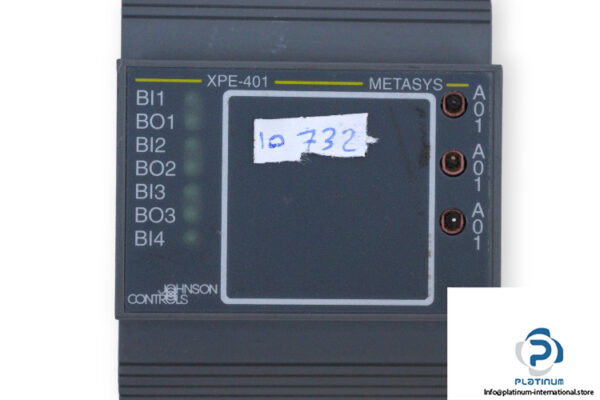

LED Indicators (green): Each input and output indicated by an LED
Protection degree: IP20
Temperature range: 0 … 50°C
Dimensions: 118 x 70 x 57 mm
